DTC B1005-55: Airbag Present Error - Coding Code Error
>>
Troubleshooting
>>

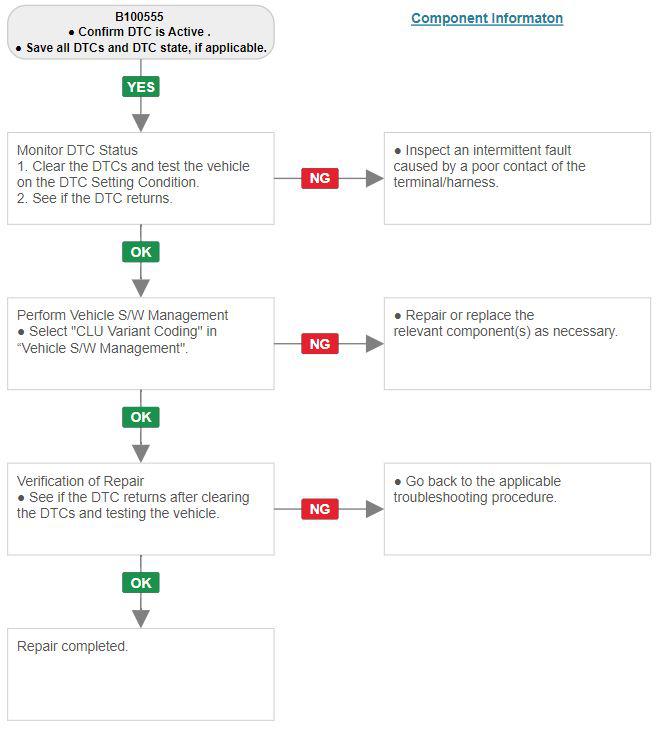

Diagnostic Flowchart
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Diagnostic Flowchart
Courtesy of HYUNDAI MOTOR AMERICA
