DTC B162A-00: Wiper Motor Module LIN Fault
>>
Troubleshooting
>>
Diagnostic Flow-Chart
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

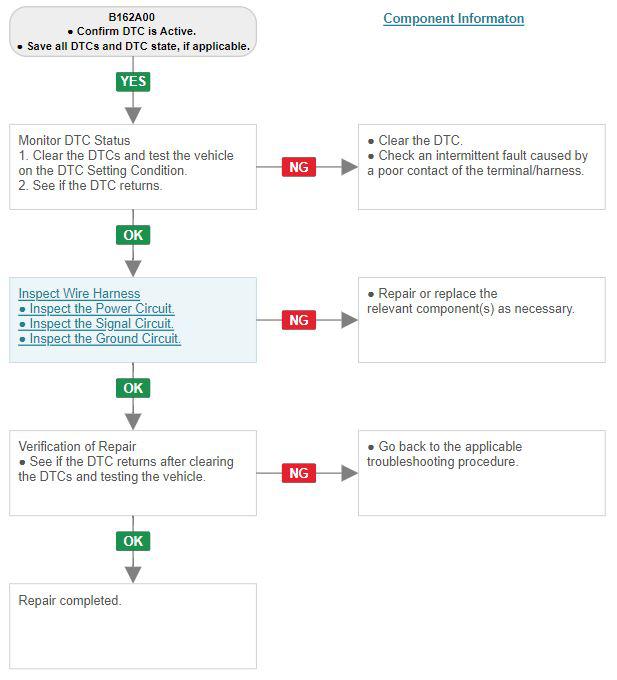

Diagnostic Flow-Chart
Courtesy of HYUNDAI MOTOR AMERICA
