Repair Procedures: Removal

Remove the under cover.
(Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ")
Remove the left side stay (A), right side stay (B).
Tightening torque:

34.3 - 41.2 N.m (3.5 - 4.2 kgf.m, 25.3 - 30.4 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA
Remove the transmission lower mounting bolt (A).
Tightening torque:

39.2 - 46.1 N.m (4.0 - 4.7 kgf.m, 28.9 - 34.0 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
Remove the engine and then transmission assembly.
(Refer to Engine Mechanical System - "ENGINE AND TRANSMISSION ASSEMBLY ")

Remove the transmission oil cooler tube (A).

Tightening torque:

Oil cooler tube mounting bolt: 19.6 - 29.4 N.m (2.0 - 3.0 kgf.m, 14.5 - 21.7 lb-ft)

Tube bracket mounting bolts: 7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb-ft)

G14179518

Courtesy of HYUNDAI MOTOR AMERICA

NOTE:

Replace the O-ring before reinstalling the oil cooler tube.

After the installation, start the engine and then check if there are any leakages from the hose.

G14179519

Courtesy of HYUNDAI MOTOR AMERICA

Loosen the wiring bracket mounting bolt (A) and wiring protector mounting bolts (B).
Tightening torque:

8.8 - 9.8 N.m (0.9 - 1.0 kgf.m, 6.5 - 7.2 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
Disconnect the main connector (A) and then loosening the bolt (B) and wiring bracket mounting bolt (C).
Tightening torque:

(B) 10.8 - 13.7 N.m (1.1 - 1.4 kgf.m, 8.0 - 10.1 lb-ft)

(C) 8.8 - 9.8 N.m (0.9 - 1.0 kgf.m, 6.5 - 7.2 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
Remove the CKP sensor (A) and wiring fixing bracket (B) after loosening the bolts.
Tightening torque:

8.8 - 9.8 N.m (0.9 - 1.0 kgf.m, 6.5 - 7.2 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
Remove the wiring fixing bracket (A, B).
Tightening torque:

8.8 - 9.8 N.m (0.9 - 1.0 kgf.m, 6.5 - 7.2 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

Remove the brake vacuum pipe.

Loosen the bracket mounting bolt (A) and then removing the vacuum pipe from the hose (B).

Tightening torque:

7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb-ft)

G14179524

Courtesy of HYUNDAI MOTOR AMERICA

Loosen the bracket mounting bolt (A) and then removing the vacuum pipe from the hose (B).

Tightening torque:

7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb-ft)

G14179525

Courtesy of HYUNDAI MOTOR AMERICA

Disconnect the EOP connector (A) and parking switch connector (B) and then removing the ground line (C).
Tightening torque:

10.8 - 13.7 N.m (1.1 - 1.4 kgf.m, 8.0 - 10.1 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
Disconnect the motor connector (A) and hydraulic sensor connector (B) and then removing the wiring bracket mounting bolt (C).
[4WD]

Tightening torque:

8.8 - 9.8 N.m (0.9 - 1.0 kgf.m, 6.5 - 7.2 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
Remove the engine support mounting bracket nut (A).
Tightening torque:

63.7 - 83.4 N.m (6.5 - 8.5 kgf.m, 47.0 - 61.5 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
Lift the engine by using the engine crane.
Remove the engine support bracket (A).
Tightening torque:

49.0 - 63.7 N.m (5.0 - 6.5 kgf.m, 36.2 - 47.0 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
Disconnect stater motor connector (A), terminal (B).

Courtesy of HYUNDAI MOTOR AMERICA
Remove the starter mounting bolts (B) and then removing the starter assembly (A).
Tightening torque:

49.0 - 63.7 N.m (5.0 - 6.5 kgf.m, 36.2 - 47.0 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA
Loosen the torque converter mounting bolts (A-6ea) by rotating the crankshaft.
Tightening torque:

45.1 - 52.0 N.m (4.6 - 5.3 kgf.m, 33.3 - 38.3 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
NOTE:
- When installing, apply the ATF to the bolts thread before tightening the bolts.
- When installing, lightly tighten the bolts (6-ea) and then tighten the bolts to the specified torque.
Remove the cross member (A).
[2WD]

Tightening torque:

29.4 - 34.3 N.m (3.0 - 3.5 kgf.m 21.7 - 25.3 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

[4WD]

Tightening torque:

63.7 - 83.4 N.m (6.5 - 8.5 kgf.m, 47.0 - 61.5 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
Remove the front propeller shaft (A) from the transfer assembly.
[4WD]

Tightening torque:

49.0 - 68.4 N.m (5.0 - 7.0 kgf.m 36.2 - 50.6 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

Remove the transfer assembly (A).

[4WD]

Tightening torque:

29.4 - 41.2 N.m (3.0 - 4.2 kgf.m, 21.7 - 30.4 lb-ft)

G14179537

Courtesy of HYUNDAI MOTOR AMERICA

NOTE: Precautions of the transfer assembly repairing

Use caution for the actuator not to be impacted by the transmission, floor or structure.

G14179538

Courtesy of HYUNDAI MOTOR AMERICA

To prevent damage to the O-ring, maintain parallel with the transmission shaft when install the transfer assembly.

G14179539

Courtesy of HYUNDAI MOTOR AMERICA

Even with the air breather valve installed, oil leaks from the collected oil during disassembling/assembling procedures in case of failure of keeping the horizontal position. Therefore, use caution when replacing the transmission.

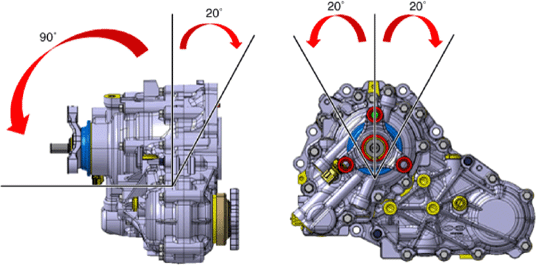

[Allowable rotation angle when removing/installing]

G14179540

Courtesy of HYUNDAI MOTOR AMERICA

Support the transmission safely on a jack.
Loosen the transmission mounting bolts (A, B, C).
Tightening torque:
1. 63.7 - 83.4 N.m (6.5 - 8.5 kgf.m, 47.0 - 61.5 lb-ft)
2. 39.2 - 46.1 N.m (4.0 - 4.7 kgf.m, 28.9 - 34.0 lb-ft)
3. 34.3 - 46.1 N.m (3.5 - 4.7 kgf.m, 25.3 - 34.0 lb-ft)
Courtesy of HYUNDAI MOTOR AMERICA
Remove the transmission from the engine.

Courtesy of HYUNDAI MOTOR AMERICA
