Repair Procedures: Removal

  1. Release the residual pressure in fuel line.

    (Refer to Fuel Delivery System - "RELEASE RESIDUAL PRESSURE IN FUEL LINE ")

  2. Switch "OFF" the ignition and disconnect the negative (-) battery terminal.
  3. Remove the rear seat cushion.

    (Refer to Body - "REAR SEAT ASSEMBLY ")

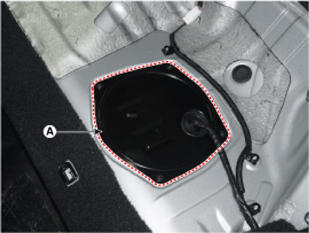

  4. Remove the fuel pump service cover (A) after loosening the mounting screws.
    G14179437Courtesy of HYUNDAI MOTOR AMERICA

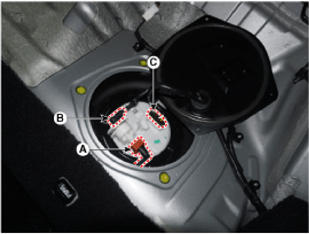

  5. Disconnect the fuel feed quick-connector (A).
  6. Disconnect the fuel pressure sensor connector (B).
  7. Disconnect the fuel pump connector (C).
    G14179438Courtesy of HYUNDAI MOTOR AMERICA

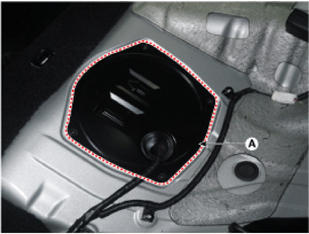

  8. Remove the sub fuel sender service cover (A) after loosening the mounting screws.
    G14179439Courtesy of HYUNDAI MOTOR AMERICA

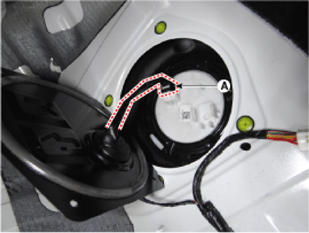

  9. Disconnect the sub fuel sender connector (A).
    G14179440Courtesy of HYUNDAI MOTOR AMERICA
  10. Lift the vehicle.
  11. Remove the side under cover.
  12. Remove the center muffler assembly.

    (Refer to Engine Mechanical System - "MUFFLER ")

  13. Remove the propeller shaft assembly.

    (Refer to Driveshaft and Axle - "PROPELLER SHAFT ")

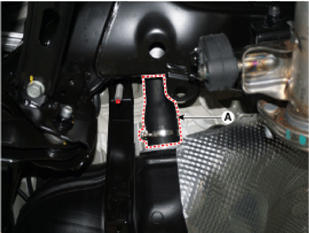

  14. Disconnect the fuel filler hose (A) and leveling hose (B).
    G14179441Courtesy of HYUNDAI MOTOR AMERICA
    G14179442Courtesy of HYUNDAI MOTOR AMERICA

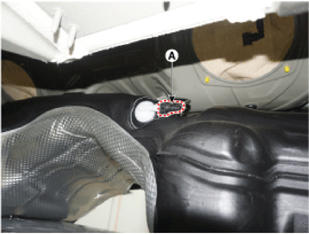

  15. Disconnect the ventilation (A).
  16. Support the fuel tank with jack (A).
  17. Remove the fuel tank installation nut (B) and then loosen the fuel tank.
