Signal Waveform & Data

Courtesy of HYUNDAI MOTOR AMERICA

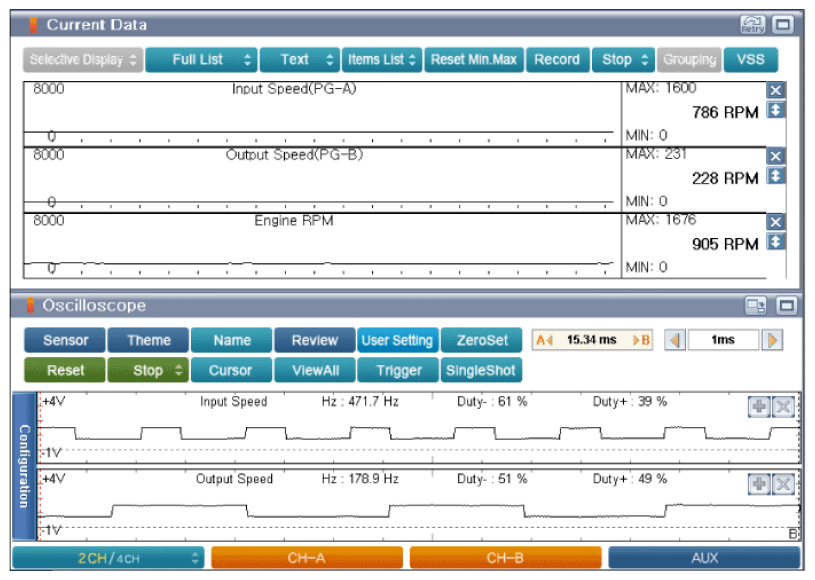

Fig.1) "N" range → MIN: 0.7V, MAX: 1.4V Input speed sensor - duty(-) 62%, Output speed sensor - duty(-) 50%.

Courtesy of HYUNDAI MOTOR AMERICA

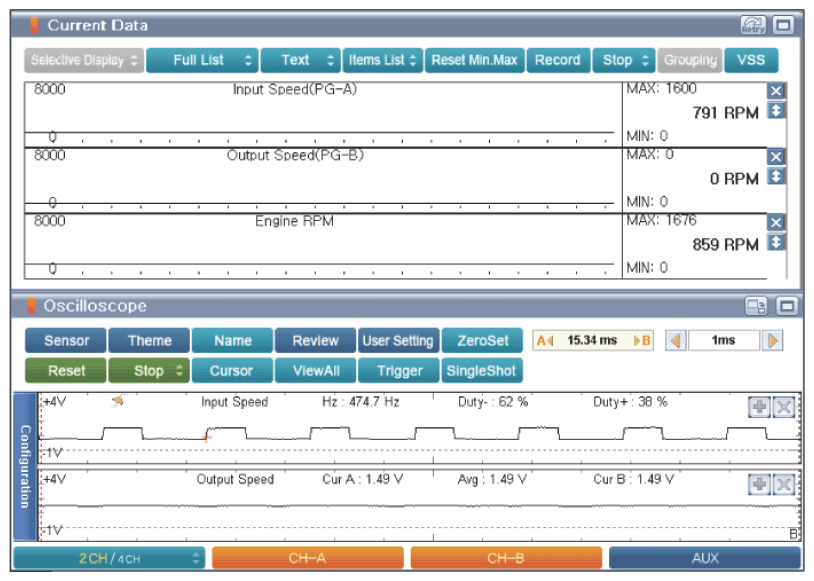

Fig.2) "D" range → MIN: 0.7V, MAX: 1.4V (duty 50%) Input speed sensor - duty(-) 62%, Output speed sensor - duty(-) 50%.
