Repair Procedures: Removal
WARNING: This page is about a different variant/trim than selected.
- Turn ignition switch OFF and disconnect the negative (-) battery cable.
- Remove the front sub frame.
(Refer to Suspension System - "SUB FRAME ")
- Remove the drive belt.
(Refer to Engine Mechanical System - "DRIVE BELT ")

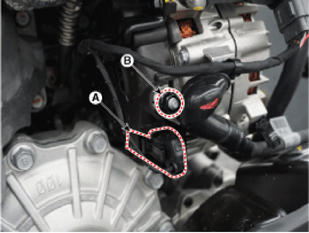

- Disconnect the alternator connector (A) and cable (B) from the "B" terminal.

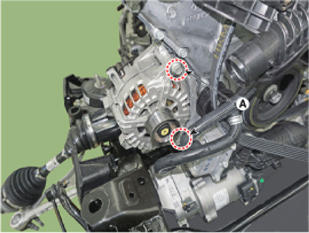

- Remove the alternator (C) after removing the mounting bolts.
