Components And Components Location: Components

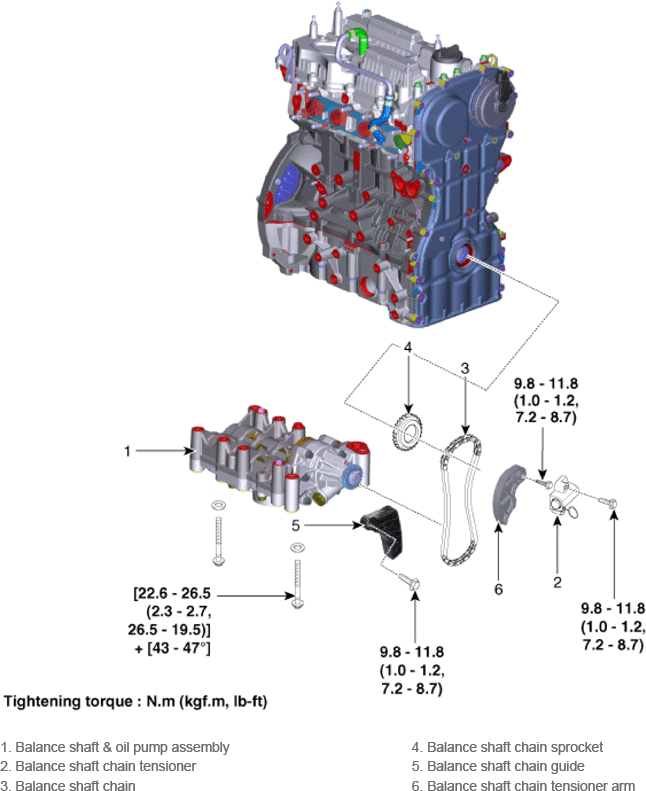

Fig 1: Balance Shaft Module Components Location With Torque Specifications
G14175218Courtesy of HYUNDAI MOTOR AMERICA
