Circuit Diagram

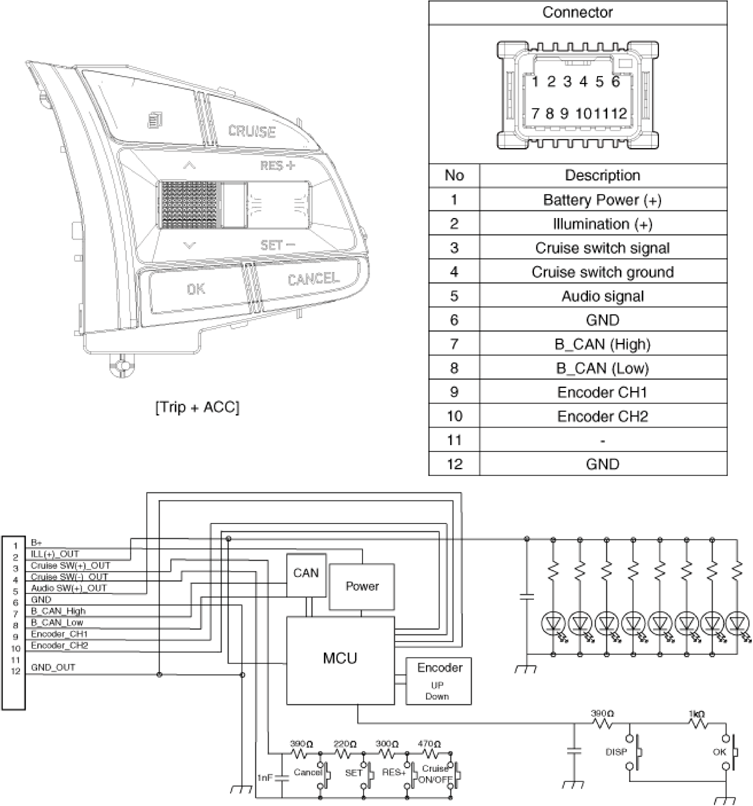

[Trip + ACC]

G14175422Courtesy of HYUNDAI MOTOR AMERICA

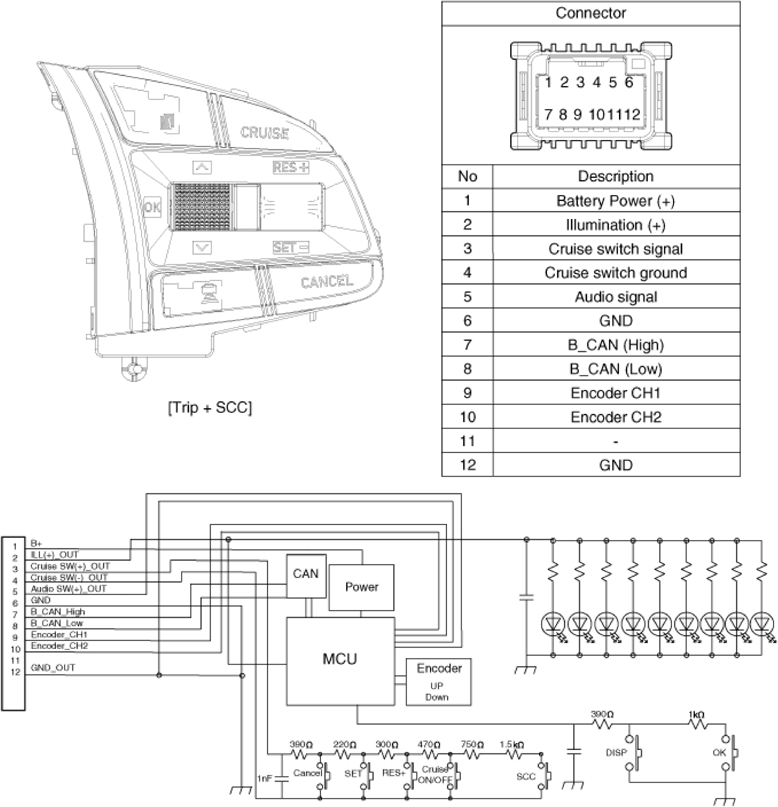

[Trip + SCC]

G14175423Courtesy of HYUNDAI MOTOR AMERICA

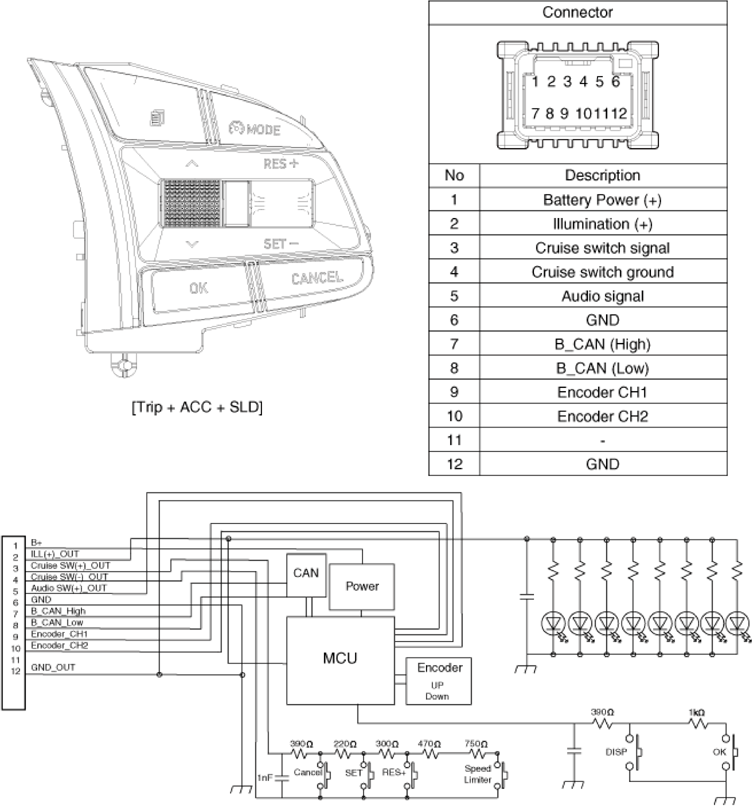

[Trip + ACC + SLD]

G14175424Courtesy of HYUNDAI MOTOR AMERICA

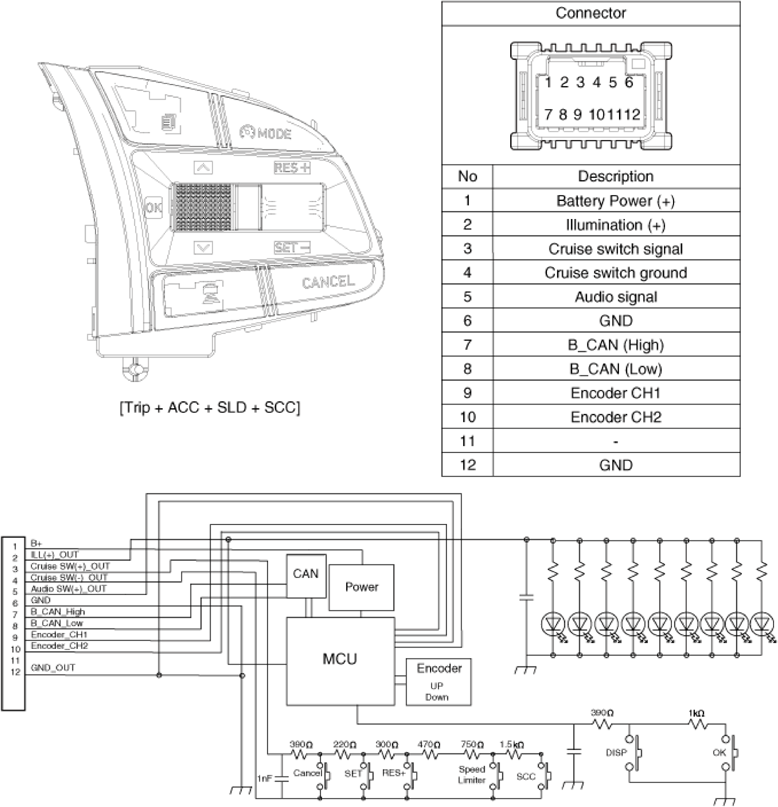

Trip + ACC + SLD + SCC]

G14175425Courtesy of HYUNDAI MOTOR AMERICA
