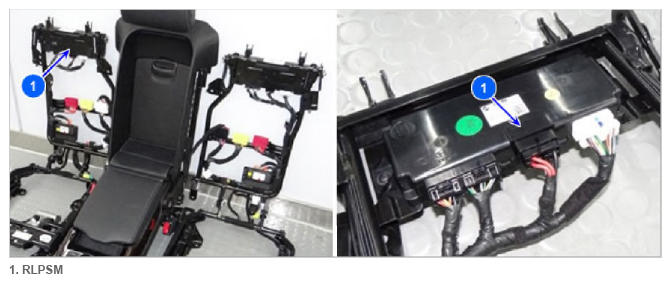

Component Location

G13554391Courtesy of HYUNDAI MOTOR AMERICA
NOTE: RLPSM (Rear Left Power Seat Module): "REAR IMS CONTROL MODULE LH"
