Component Location

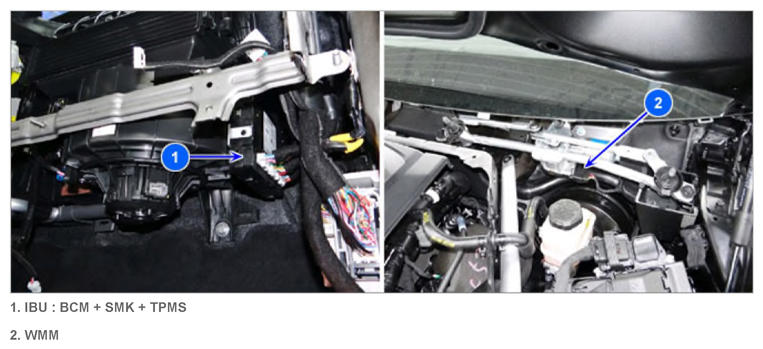

G13554161Courtesy of HYUNDAI MOTOR AMERICA
NOTE: IBU (Integrated Body control Unit): "IBU CONTROL MODULE"
BCM: Body Control Module
SMK: Smart Key control Module
TPMS: Tire Pressure Monitoring System module
WMM (Wiper Motor Module): "WIPER MOTOR"
