Signal Waveform And Data

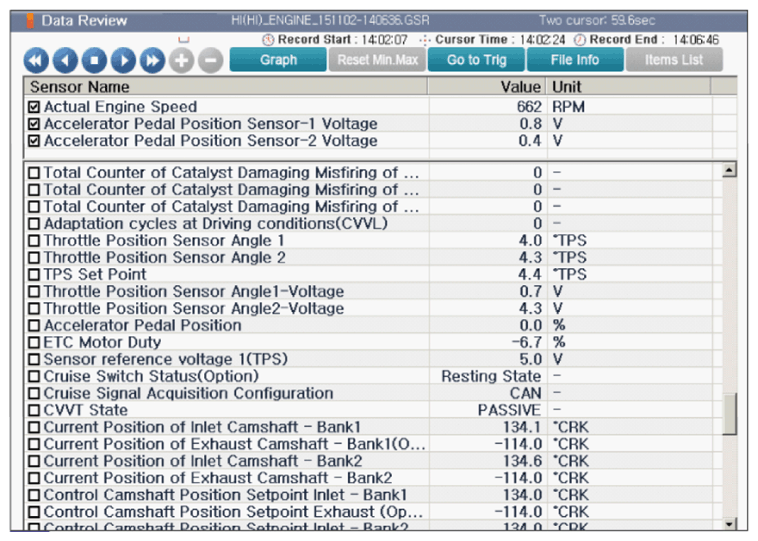

G13553292Courtesy of HYUNDAI MOTOR AMERICA

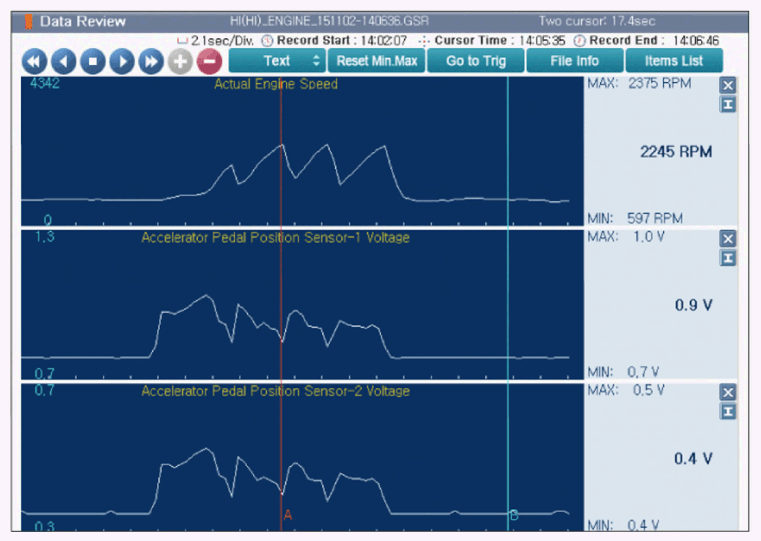

G13553293Courtesy of HYUNDAI MOTOR AMERICA

Signal waveform of APS 1 & 2 shows that APS 2 increases voltage just half of APS 1 voltage increase when accelerating.
