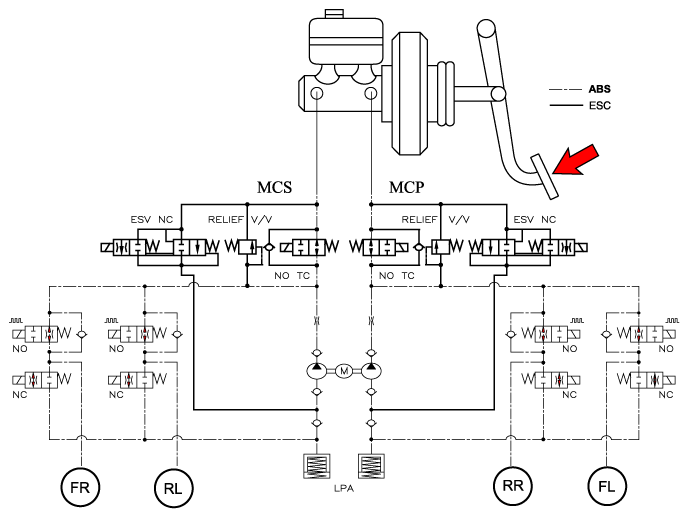

ESC Hydraulic System Diagram: Notes
 Courtesy of HYUNDAI MOTOR AMERICA
|
- ESC Non-operation: Normal braking.
| Solenoid Valve |
Continuity |
Valve |
Motor Pump |
TC Valve |
| IN (NO) |
OFF |
OPEN |
OFF |
OFF |
| OUT (NC) |
OFF |
CLOSE |
- ESC operation
| Solenoid Valve |
Continuity |
Valve |
Motor Pump |
TC Valve |
| Under-Steering (Only inside of Rear Wheel) |
IN (NO) |
OFF |
OPEN |
ON |
ON |
| OUT (NC) |
OFF |
CLOSE |
| Over-Steering (Only outside of Front Wheel) |
IN (NO) |
OFF |
OPEN |
| OUT (NC) |
OFF |
CLOSE |
