Repair Procedures: Installation

WARNING: This page is about a different car, the 2017 Genesis G90. However, it is still accessible from the selected car via links, so may be relevant.
  1. After inserting, turn the stop switch (A) 45° clockwise.
    Fig 1: Turning Stop Switch Clockwise
    G11405087Courtesy of HYUNDAI MOTOR AMERICA
  2. Assemble the locking plate (A) by pushing it as indicated by the arrow.
    Fig 2: Inserting Lock Plate
    G11405088Courtesy of HYUNDAI MOTOR AMERICA
  3. Confirm the gap (A) between stop lamp switch and bracket.

    Stop Lamp Clearance  : 0.7 - 1.7 mm (0.03-0.07 in.)

    Fig 3: Checking Gap Between Stop Lamp Switch And Bracket Measurements
    G11405089Courtesy of HYUNDAI MOTOR AMERICA
  4. If the gap between stop lamp switch and bracket is less than 0.7-1.7mm (0.03-0.07in.), check the mounting clip and other parts around the stop lamp. If normal, remove the stop lamp switch and then install again.
  5. Connect the stop lamp switch connector.

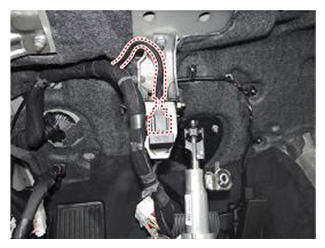

    Fig 4: Stop Lamp Switch Connector
    G11405090Courtesy of HYUNDAI MOTOR AMERICA
  6. Install the knee airbag.

    (Refer to Restraint - "AIRBAG MODULE ")

  7. Install the lower crash pad.

    (Refer to Body - "CRASH PAD ")

  8. Turn Ignition Switch OFF and disconnect the Negative (-) Battery Cable.
