Repair Procedures: Removal

  1. Turn ignition switch OFF and disconnect the negative (-) battery cable.
  2. Remove the steering wheel assembly.

    (Refer to Steering System - "STEERING WHEEL ")

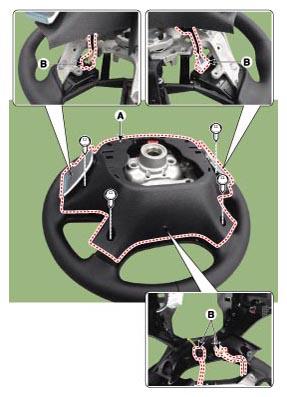

  3. Remove the steering wheel back cover (A) after loosening the screws and disconnecting the connectors (B).
    G12715533Courtesy of HYUNDAI MOTOR AMERICA
  4. Remove the steering wheel remote control (A) after loosening the mounting screw.
    G12715534Courtesy of HYUNDAI MOTOR AMERICA
