Components And Components Location: Components

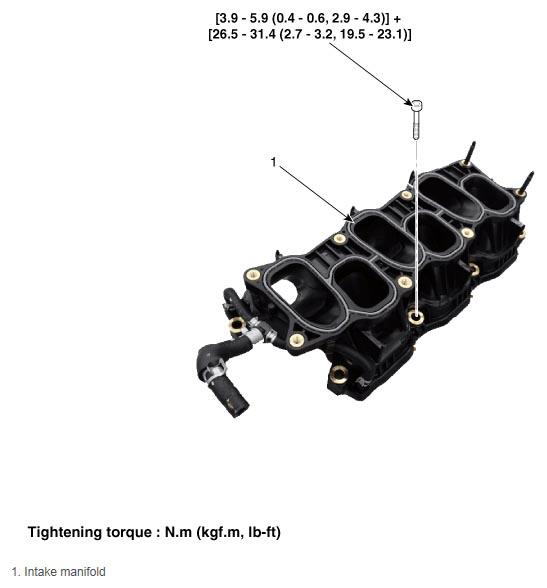

Fig 1: Intake Manifold With Torque Specification
G12662956Courtesy of HYUNDAI MOTOR AMERICA
