Variant Coding (In Case That The GDS Is Connected To The Internet)

  1. Connect GDS to Data Link Connector (DLC).
  2. IG "ON".
  3. Perform variant coding in Vehicle S/W Management menu of the GDS. (Fig 1)
  4. Fill in blanks with VIN number of the vehicle correctly. (Fig 2)
  5. Check whether current variant code corresponds to the options which are applied to the vehicle. (Fig 3)
  6. IG "OFF" and wait for about 10 seconds, and then IG "ON". Go to "Variant Code Reset" Procedure.
    NOTE: In case that the state of HAC is enabled, operate "Longitudinal G Sensor Calibration" by GDS. (refer to C1285 )

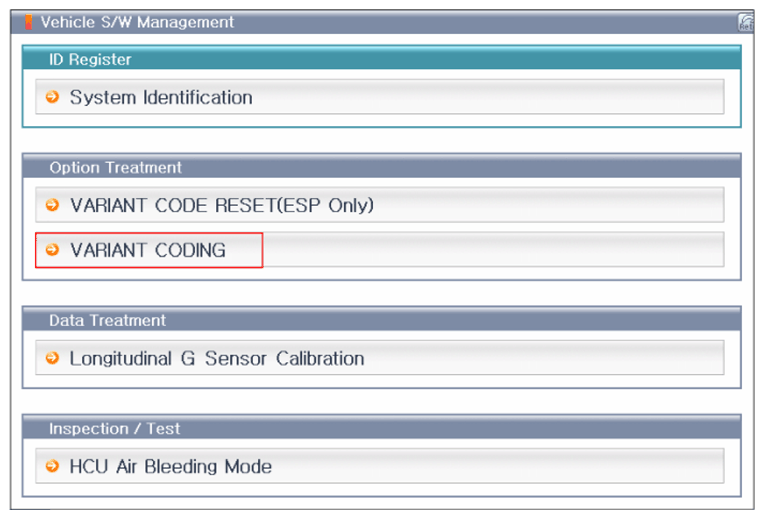

    Fig 1: Variant Coding (1 Of 3)
    G12654460Courtesy of HYUNDAI MOTOR AMERICA

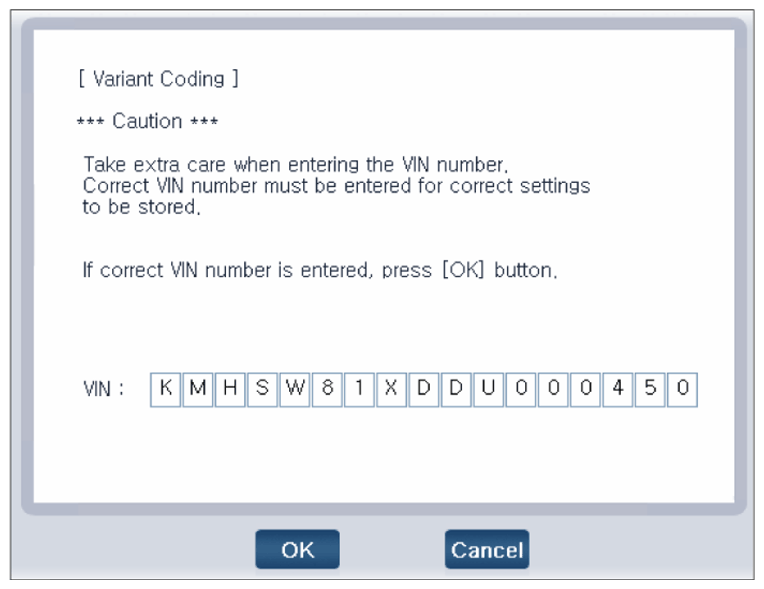

    Fig 2: Variant Coding (2 Of 3)
    G12654461Courtesy of HYUNDAI MOTOR AMERICA

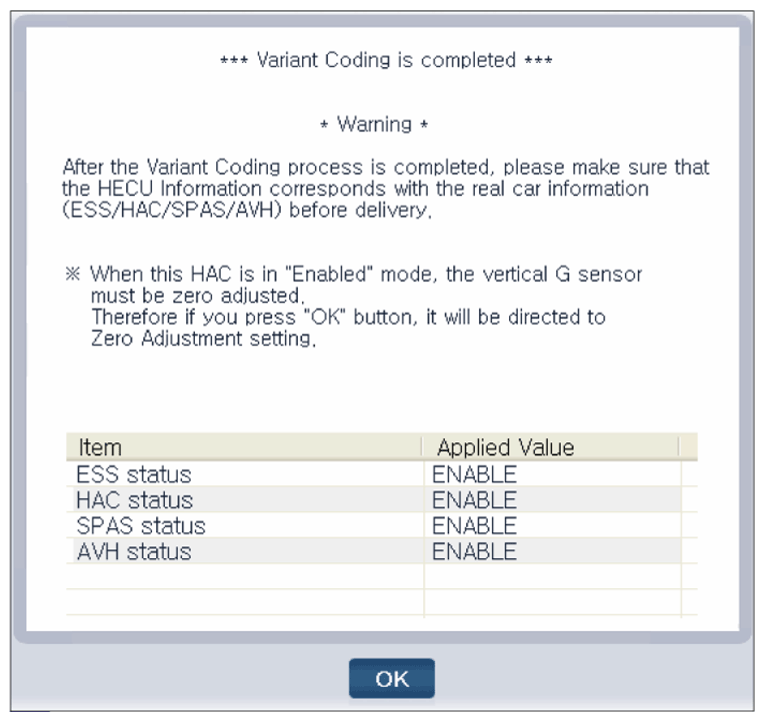

    Fig 3: Variant Coding (3 Of 3)
    G12654462Courtesy of HYUNDAI MOTOR AMERICA
