Home >> Genesis >> 2019 >> G70 3.3T Dynamic, AWD >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Hydraulic System - 3.3L >> Valve Body >> Components and Components Location >> Components
July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

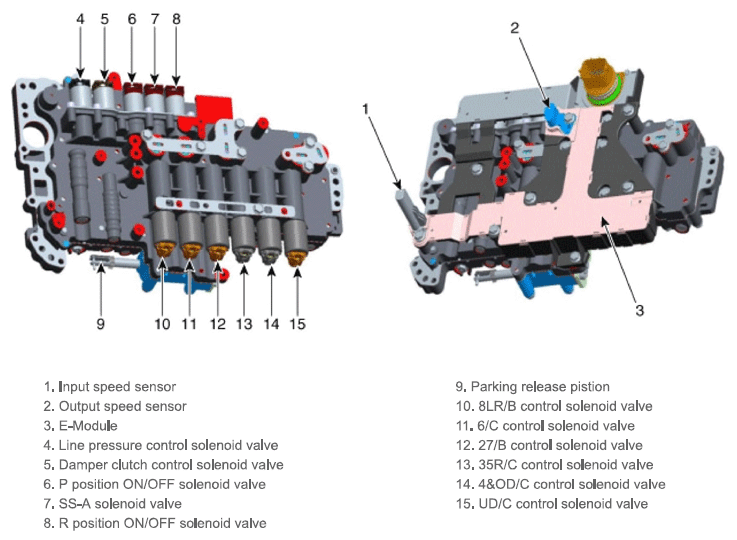

Components and Components Location: Components

G13543628Courtesy of HYUNDAI MOTOR AMERICA
