Signal Waveform & Data

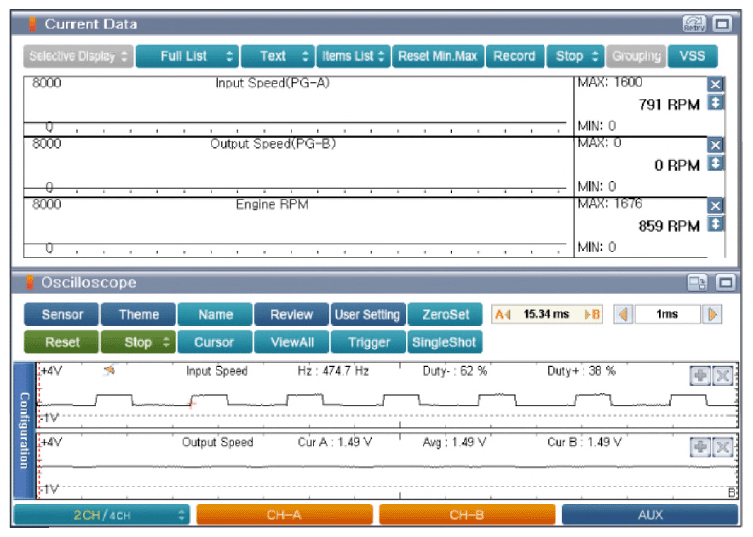

G13545498Courtesy of HYUNDAI MOTOR AMERICA

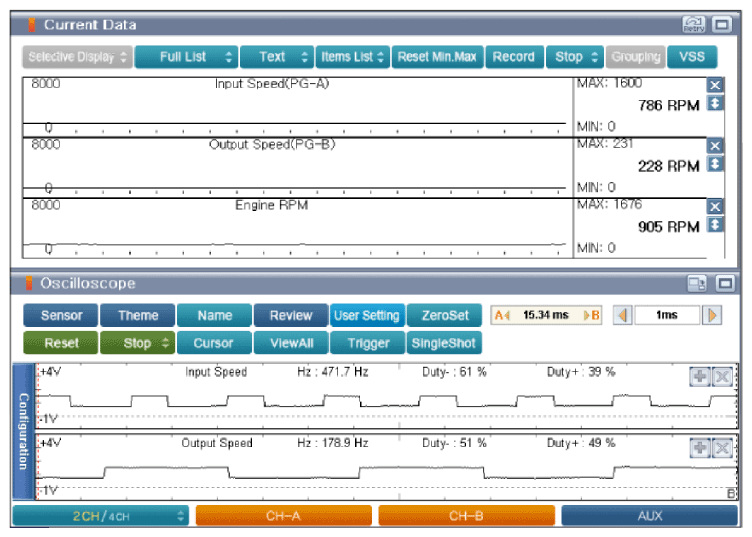

G13545499Courtesy of HYUNDAI MOTOR AMERICA

Input speed sensor - duty (-) 62%

Output speed sensor - duty (-) 50%

Input speed sensor - duty (-) 62%

Output speed sensor - duty (-) 50%
