Components & Components Location: Components

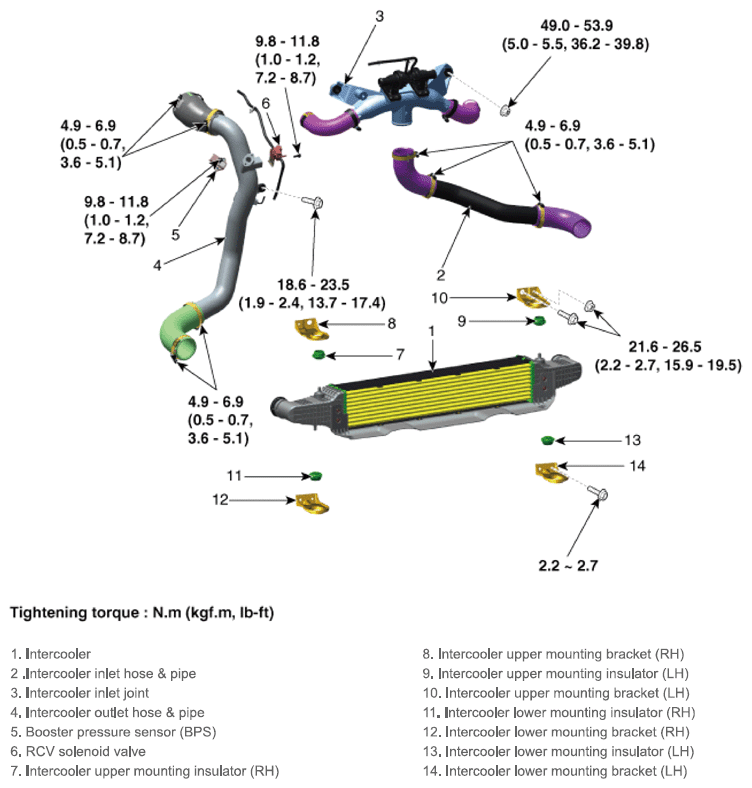

Fig 1: Intercooler Components Location With Torque Specification
G13543028Courtesy of HYUNDAI MOTOR AMERICA
