Components & Components Location: Components

WARNING: This page is about a different variant/trim than selected.

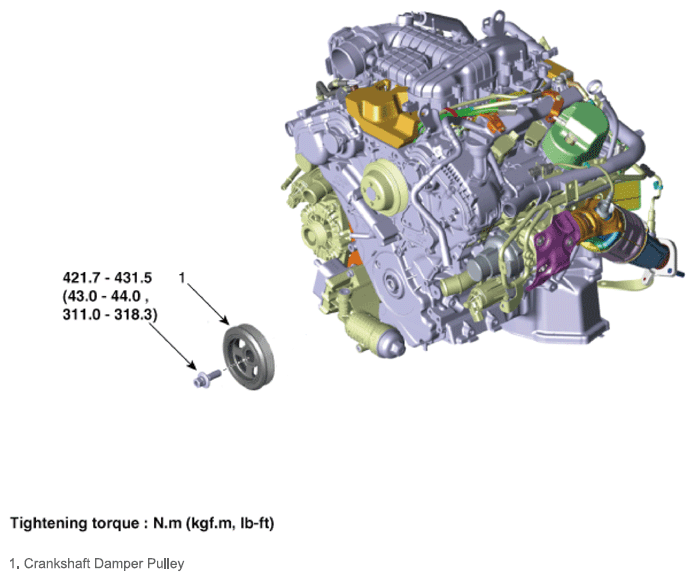

Fig 1: Crankshaft Damper Pulley Components Location With Torque Specification
G13542595Courtesy of HYUNDAI MOTOR AMERICA
