Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the front seat outer shield cover.

    (Refer to Body - "FRONT SEAT OUTER SHIELD COVER ")

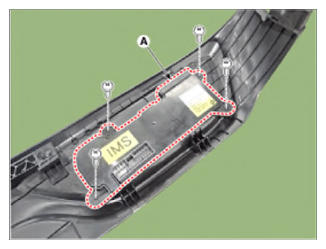

  3. Remove the power seat control switch (A) after loosening the screws.
G13541828Courtesy of HYUNDAI MOTOR AMERICA
