Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the front seat back cover.

    (Refer to Body - "FRONT SEAT BACK COVER ")

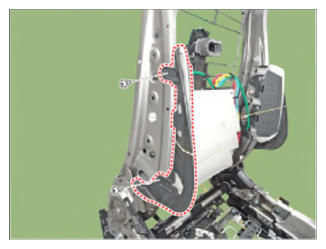

  3. Loosen the bolster mounting screw.
    G13541833Courtesy of HYUNDAI MOTOR AMERICA

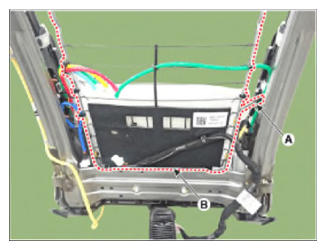

  4. Remove the lever (A) and then remove the lumbar support & bolster assembly (B).
G13541834Courtesy of HYUNDAI MOTOR AMERICA
