Genesis
>>
2019
>>
G70 2.0T Advanced, AWD
>>
Repair and Diagnosis
>>
Accessories & Equipment
>>
Cruise Control Systems
>>
Smart Cruise Control (Stop & Go) System
>>
Smart Cruise Control (Stop & Go) (SCC) ECU
>>
Schematic Diagrams
>>
Notes
September 30: LEMON manuals is back up on a temporary server! Slowness is possible

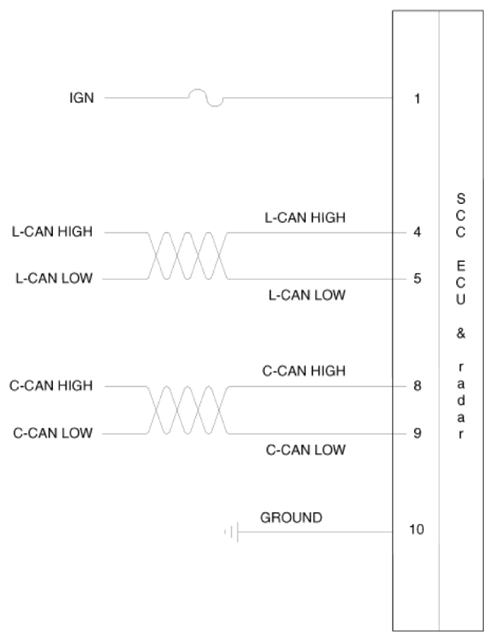

Schematic Diagrams: Notes
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
