Repair Procedures: Inspection

WARNING: This page is about a different car, the 2016 Kia Sedona. However, it is still accessible from the selected car via links, so may be relevant.

Inspection of the Smart Tailgate Using GDS

Check up through GDS analyzing device, the failure code, monitoring on entered value, and by forcefully operating actuator and self diagnosis, failed area can be detected promptly.
Select the vehicle and menu to analyze the Smart Tailgate module.
Select the "STM" to check the DTC of the power trunk module.
Select the "Service Data" to view the current status in accordance with the input/output value. Offer status of the each switch and sensor.

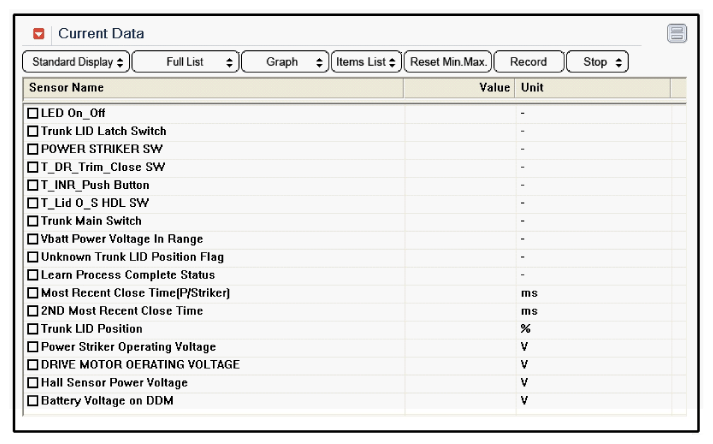

Fig 1: Display - Service Data Current Status Screen
Courtesy of KIA MOTORS AMERICA, INC.
