Fuel Delivery System - 5.0L: Troubleshooting

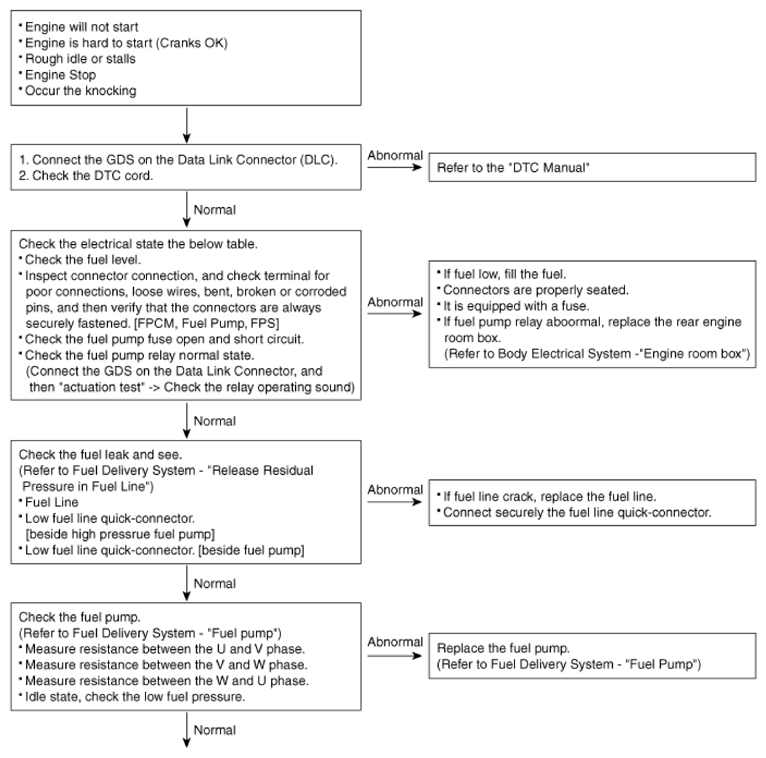

Fig 1: Fuel Delivery System - Troubleshooting Flowchart (1 Of 2)

G11404432

Courtesy of HYUNDAI MOTOR AMERICA

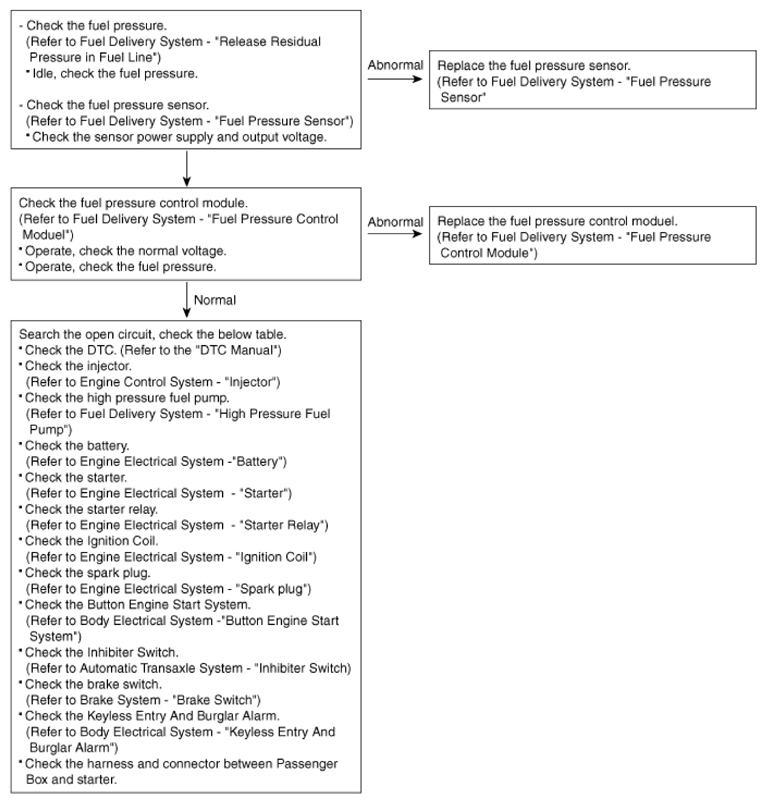

Fig 2: Fuel Delivery System - Troubleshooting Flowchart (2 Of 2)

G11404433

Courtesy of HYUNDAI MOTOR AMERICA

CAUTION:

Check the fuel pressure after replacing parts.
(Refer to Fuel Delivery System - "RELEASE RESIDUAL PRESSURE IN FUEL LINE ")

ENGINE CONTROL/FUEL SYSTEM - GENERAL INFORMATION - 5.0L
