Repair Procedures: Inspection

  1. Turn the ignition switch OFF and disconnect the negative (-) battery cable.
  2. Remove the sub fuel sender.
  3. Using an ohmmeter, measure the resistance between terminals 1 and 2 of sender connector (A) at each float level.

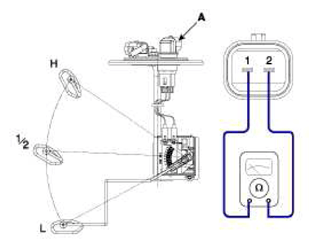

    Fig 1: Measuring Resistance Between Terminals 1 And 2 Of Sender Connector
    G11404452Courtesy of HYUNDAI MOTOR AMERICA
    Pin No. Description
    1 Fuel sender signal
    2 Fuel sender ground
  4. Check that the resistance is within the specification.
    Position Resistans (Ω) Capacity ( )
    1/2 160 - 162 3.5
    H 7 - 9 43.5
