Repair Procedures: Inspection

WARNING: This page is about a different car, the 2016 Kia K900. However, it is still accessible from the selected car via links, so may be relevant.

It will be able to diagnose defects of interior lamp with GDS quickly. GDS can operates actuator forcefully, input/output value monitoring and self diagnosis.
Select vehicle model, "BCM" and "FSJB" to check.
Select "Current data", if you will check current data of room lamp. It provides input/output status of FSJB.

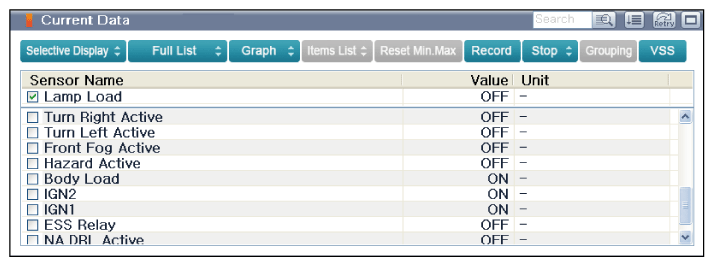

Fig 1: Screen Display - Current Data
Courtesy of KIA MOTORS AMERICA, INC.
Select "Actuation Test", if you want to check forcefully.

Fig 2: Screen Display - Actuation Test

Courtesy of KIA MOTORS AMERICA, INC.
