Rail Pressure Sensor (RPS)

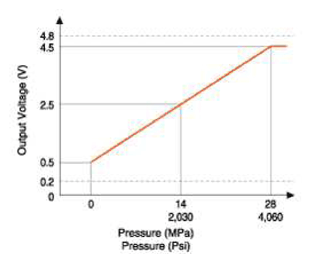

Fig 1: RPS Output Voltage And Pressure Graph
G11412081Courtesy of HYUNDAI MOTOR AMERICA
