Fuel Pressure Sensor (FPS): Specifications: Specification

FUEL PRESSURE SENSOR (FPS) OUTPUT VOLTAGE SPECIFICATION

Pressure (kPa) Output Voltage (V)
50 0.3
600 2.5
1100 4.5

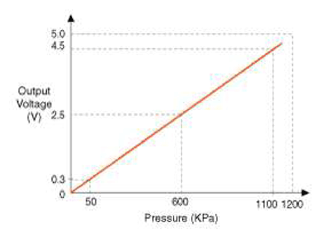

Fig 1: Fuel Pressure Sensor Voltage And Pressure Graph
G11412303Courtesy of HYUNDAI MOTOR AMERICA
