Components Location: Troubleshooting

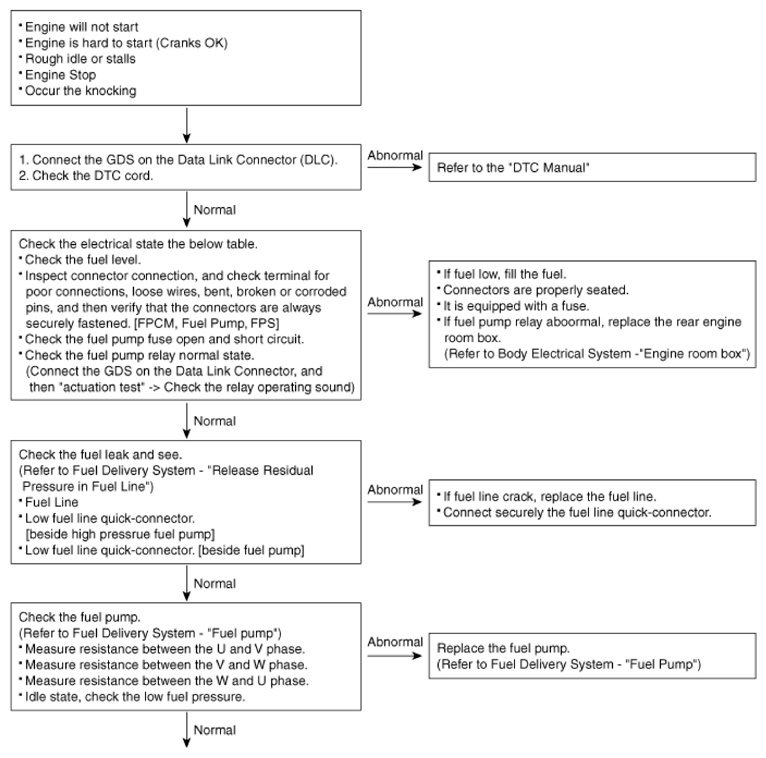

Fig 1: Troubleshooting Flow Chart (1 Of 2)
G11412249Courtesy of HYUNDAI MOTOR AMERICA

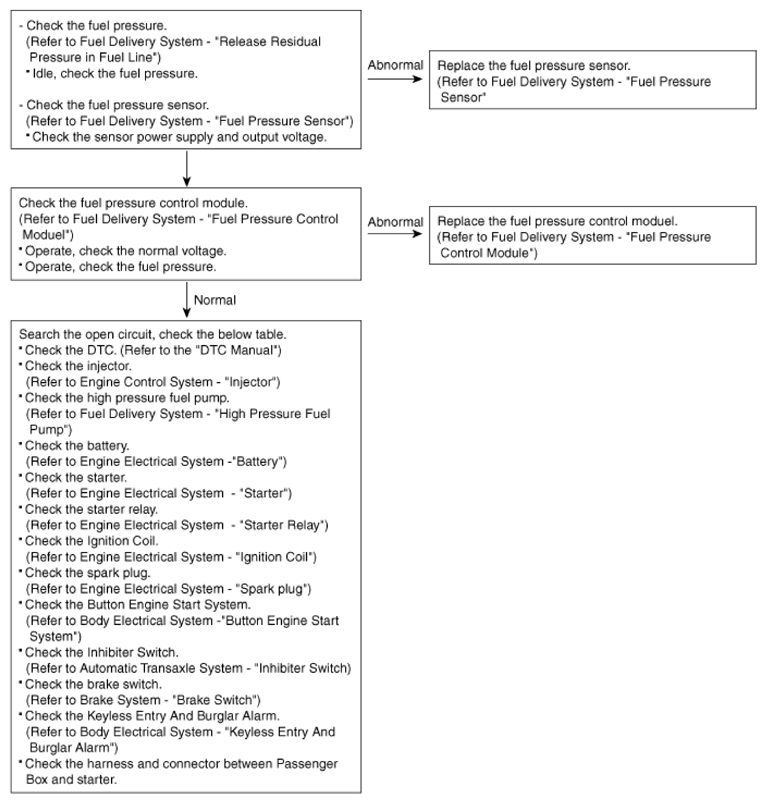

Fig 2: Troubleshooting Flow Chart (2 Of 2)
G11412250Courtesy of HYUNDAI MOTOR AMERICA
CAUTION:
