Components Location: Notes

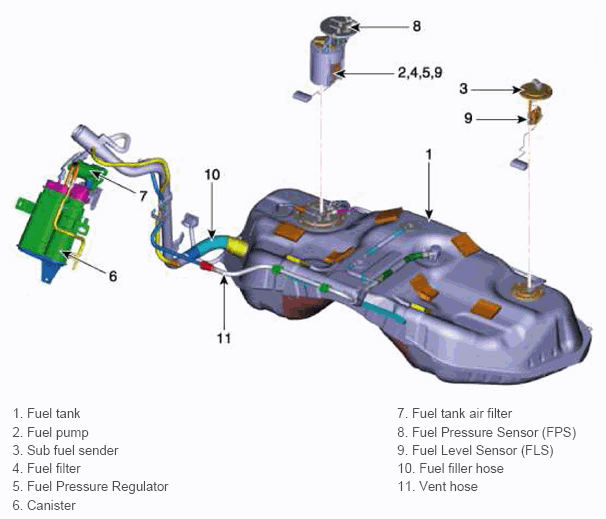

Fig 1: Fuel Delivery System Related Components
G11412247Courtesy of HYUNDAI MOTOR AMERICA

[High Pressure Fuel Line]

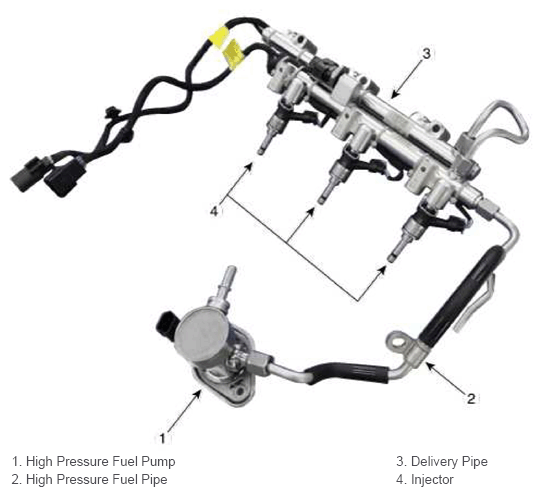

Fig 2: High Pressure Fuel Line Related Components
G11412248Courtesy of HYUNDAI MOTOR AMERICA
WARNING:
  • In case of removing the high pressure fuel pump, high pressure fuel pipe, delivery pipe, and injector, there may be injury caused by leakage of the high pressure fuel. Do not conduct any remedy work right after the engine stops.
