Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the front seat.

    (Refer to Body - "FRONT SEAT ASSEMBLY ")

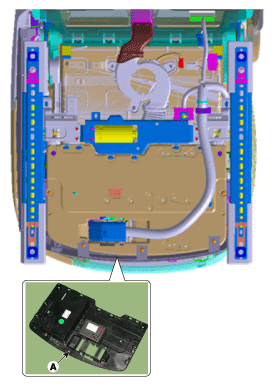

  3. Driver settings menu (USM) is Off,
    G11342211Courtesy of
  4. Loosen the mounting screws (2) and remove the IMS unit (A).
G11342212Courtesy of
