Repair Procedures: Removal

Disconnect the negative (-) battery terminal.
Remove the rear bumper.
(Refer to REAR BUMPER Body )
Remove the BSD unit (A) after loosening the mounting nuts.

Courtesy of

Courtesy of

NOTE: Take care not to separate the bracket from rear bumper when removing the BSD sensor.

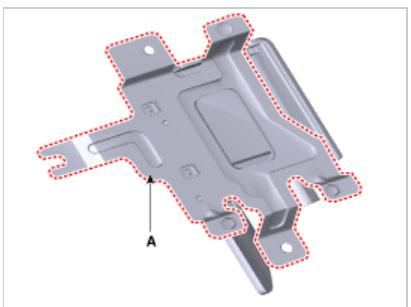

Replace the bracket (A) when the bracket is physically changed or damaged.

Courtesy of

CAUTION: * Radar does not work normally if the bracket is physically changed or damaged.
Replace the extension wiring when it damaged.
