Plug-In Charging Wiring Schematics
>>
DC Power - Battery Charging
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

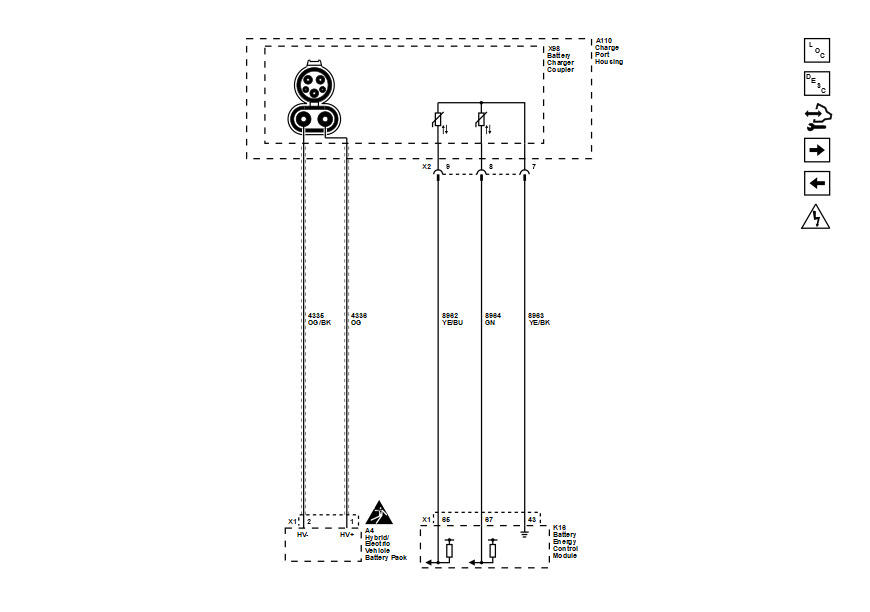

DC Power - Battery Charging
Courtesy of GENERAL MOTORS COMPANY
