Installation Procedure

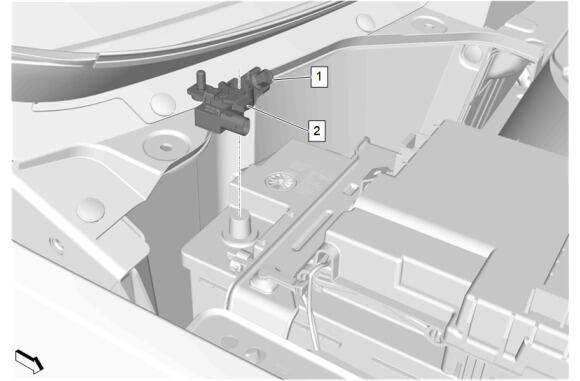

  1. GM6293517Courtesy of GENERAL MOTORS COMPANY

    Battery Monitor Module (2) - Install

    2. CAUTION:

    Refer to Fastener Caution

  2. Battery Monitor Module (1) - Tighten - Fastener Specifications

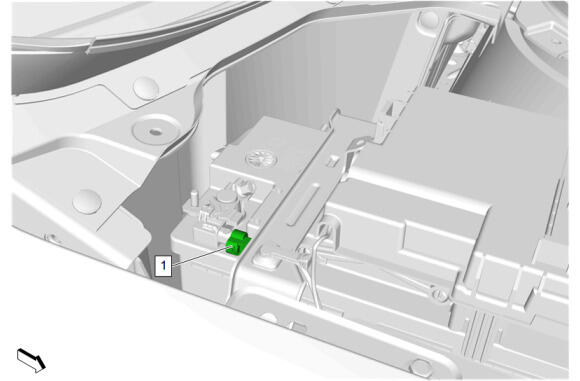

  3. GM6298267Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connector. (1)

  4. Connect the battery negative cable. Battery Negative Cable Disconnection and Connection
  5. Learn the battery sensor module. Battery Sensor Module Learn
