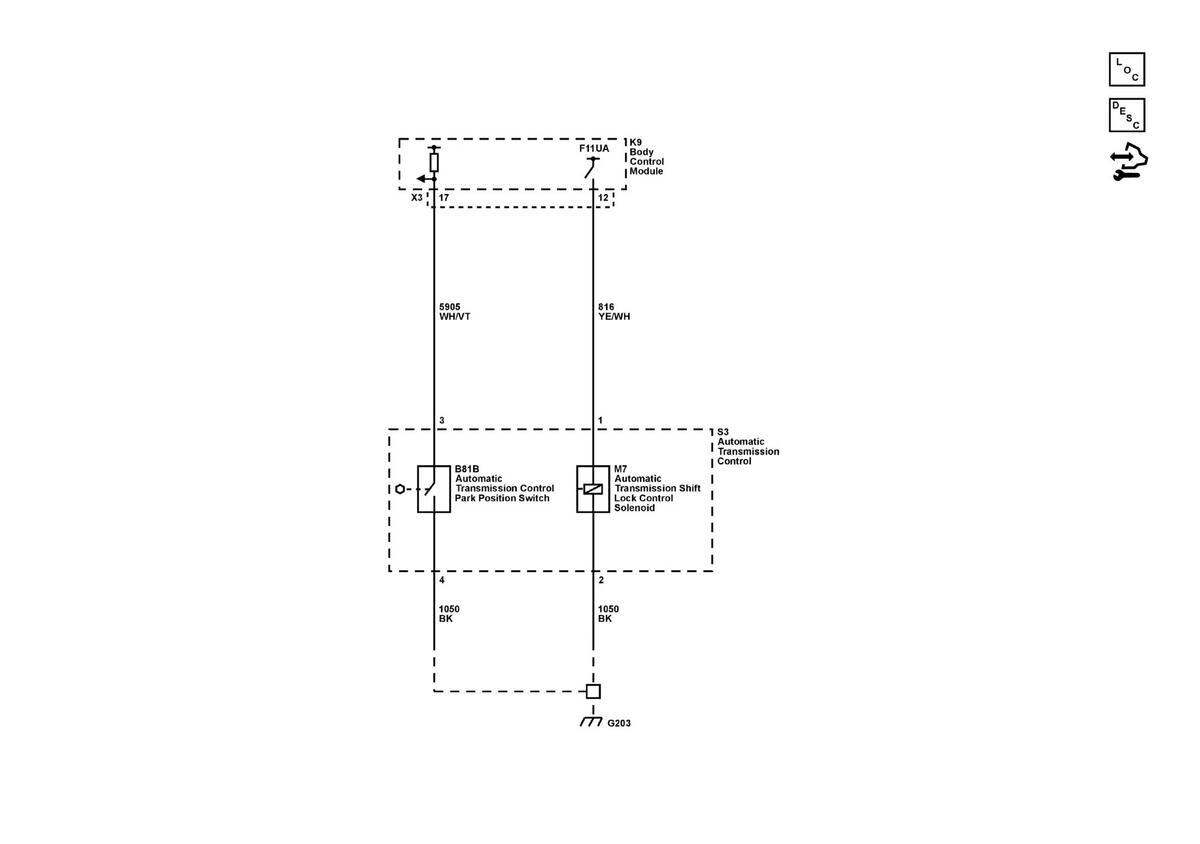

Shift Lock Control

WARNING: This page is about a different car, the 2024 Chevrolet Silverado 3500 HD and 2024 Chevrolet Silverado 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.
GM6150393Courtesy of GENERAL MOTORS COMPANY
