Fastener Specifications

GM5893378Courtesy of GENERAL MOTORS COMPANY
Automatic Transmission Fluid Cooling Exchanger

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Automatic Transmission Fluid Cooling Exchanger Seal [2x] Yes - - Automatic Transmission Fluid Cooling Exchanger Replacement (S8L) , or Automatic Transmission Fluid Cooling Exchanger Replacement (GQH / GQI / GQO and P79) , or Automatic Transmission Fluid Cooling Exchanger Replacement (GQH / GQI / GQO and P80 / P8L) , or Automatic Transmission Fluid Cooling Exchanger Replacement (GQ2 / GQB / GQC and P79) , or Automatic Transmission Fluid Cooling Exchanger Replacement (GQ2 / GQB / GQC and P80 / P8L)
2 Automatic Transmission Fluid Cooling Exchanger Bolt [3x] - - 15 N.m (11 lb ft) Automatic Transmission Fluid Cooling Exchanger Replacement (S8L) , or Automatic Transmission Fluid Cooling Exchanger Replacement (GQH / GQI / GQO and P79) , or Automatic Transmission Fluid Cooling Exchanger Replacement (GQH / GQI / GQO and P80 / P8L) , or Automatic Transmission Fluid Cooling Exchanger Replacement (GQ2 / GQB / GQC and P79) , or Automatic Transmission Fluid Cooling Exchanger Replacement (GQ2 / GQB / GQC and P80 / P8L)
GM5898956Courtesy of GENERAL MOTORS COMPANY
Chassis Control Module Bracket

Callout Component Name Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Chassis Control Module Bracket Bolt [2x] - - 9 N.m (80 lb in) Drive Motor Battery Radiator Surge Tank Replacement
2 Chassis Control Module Bracket Nut - - 9 N.m (80 lb in) Drive Motor Battery Radiator Surge Tank Replacement
GM5893393Courtesy of GENERAL MOTORS COMPANY
Drive Motor Battery Charger Receptacle Coolant Inlet Secondary Hose (P79)

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Drive Motor Power Inverter Module Bolt - - 9 N.m (80 lb in) Drive Motor Battery Charger Receptacle Coolant Inlet Secondary Hose Replacement (GQH / GQI / GQO and P79) , or Drive Motor Battery Charger Receptacle Coolant Inlet Secondary Hose Replacement (GQ2 / GQB / GQC and P79)
2 Drive Motor Power Inverter Module Nut - - - Drive Motor Battery Charger Receptacle Coolant Inlet Secondary Hose Replacement (GQH / GQI / GQO and P79) , or Drive Motor Battery Charger Receptacle Coolant Inlet Secondary Hose Replacement (GQ2 / GQB / GQC and P79)

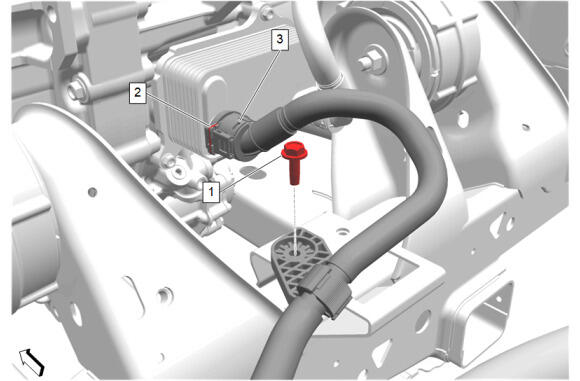

GM6325415Courtesy of GENERAL MOTORS COMPANY
Drive Motor Battery Charger Receptacle Coolant Inlet Secondary Hose (P80, P8L)

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Drive Motor Battery Charger Receptacle Coolant Inlet Secondary Hose Clip Bolt - - 22 N.m (16 lb ft) Drive Motor Battery Charger Receptacle Coolant Inlet Secondary Hose Replacement (GQH / GQI / GQO and P80 / P8L) , or Drive Motor Battery Charger Receptacle Coolant Inlet Secondary Hose Replacement (GQ2 / GQB / GQC and P80 / P8L)
GM5905418Courtesy of GENERAL MOTORS COMPANY
Drive Motor Battery Cooling Blower Bracket

Callout Component Name Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Drive Motor Battery Cooling Blower Bracket Bolt [2x] - - 22 N.m (16 lb ft) Drive Motor Battery Coolant Cooler Replacement
GM5837851Courtesy of GENERAL MOTORS COMPANY
Drive Motor Battery Cooling Blower Bracket

Callout Component Name Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Drive Motor Battery Cooling Blower Bracket Nut [2x] - - 9 N.m (80 lb in) Drive Motor Battery Coolant Cooler Replacement
GM5898958Courtesy of GENERAL MOTORS COMPANY
Drive Motor Battery Radiator Surge Tank

Callout Component Name Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Drive Motor Battery Radiator Surge Tank Bolt - - 9 N.m (80 lb in) Drive Motor Battery Radiator Surge Tank Replacement
GM5905817Courtesy of GENERAL MOTORS COMPANY
Drive Motor Battery Charger Receptacle Coolant Outlet Hose

Callout Component Name Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Hybrid Powertrain Control Module 2 Nut [3x] - - 9 N.m (80 lb in) Drive Motor Battery Charger Receptacle Coolant Outlet Hose Replacement
GM5783051Courtesy of GENERAL MOTORS COMPANY
Drive Motor Control Module Cooling Inlet Hose

Callout Component Name Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Drive Motor Control Module Cooling Inlet Hose Bolt - - 9 N.m (80 lb in) Drive Motor Battery Charger Receptacle Coolant Inlet Hose Replacement
GM5903573Courtesy of GENERAL MOTORS COMPANY
Drive Motor Power Inverter Module Bracket Bolt and Drive Motor Power Inverter Module (Drive Motor Power Distribution Control Module Hose)

Callout Component Name Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Drive Motor Power Inverter Module Bolt - - 9 N.m (80 lb in) Drive Motor Power Distribution Control Module Hose Replacement
2 Drive Motor Power Inverter Module Nut - - - Drive Motor Power Distribution Control Module Hose Replacement
GM5903709Courtesy of GENERAL MOTORS COMPANY
Drive Motor Power Inverter Module Bracket Bolt and Drive Motor Power Inverter Module Nut (Rear Electric Drive Transmission Module Coolant Hose)

Callout Component Name Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Drive Motor Power Inverter Module Bolt - - 9 N.m (80 lb in) Rear Electric Drive Transmission Module Coolant Hose Replacement (P79) , or Rear Electric Drive Transmission Module Coolant Hose Replacement (P80 / P8L)
2 Drive Motor Power Inverter Module Nut - - - Rear Electric Drive Transmission Module Coolant Hose Replacement (P79) , or Rear Electric Drive Transmission Module Coolant Hose Replacement (P80 / P8L)
GM5837752Courtesy of GENERAL MOTORS COMPANY
Generator Control Module Coolant Pump Bracket

Callout Component Name Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Generator Control Module Coolant Pump Bracket Bolt - - 9 N.m (80 lb in) Drive Motor Control Module Coolant Pump Hose Replacement
GM5868294Courtesy of GENERAL MOTORS COMPANY
Generator Control Module Coolant Pump Bracket

Callout Component Name Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Generator Control Module Coolant Pump Bracket Bolt [2x] - - 9 N.m (80 lb in) Hybrid/Electric Vehicle Battery Coolant Pump Replacement - Left Side
Hybrid/Electric Vehicle Battery Coolant Pump Replacement - Right Side
GM5862951Courtesy of GENERAL MOTORS COMPANY
High Voltage Battery Heater Bracket

Callout Component Name Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 High Voltage Battery Heater Bracket Bolt [4x] - - 9 N.m (80 lb in) High Voltage Battery Heater Module Replacement

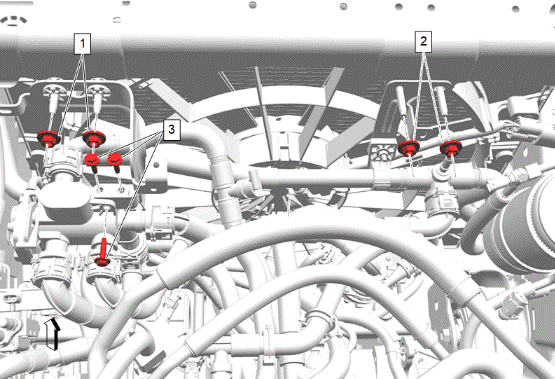

GM6182584Courtesy of GENERAL MOTORS COMPANY
Hybrid/Electric Vehicle Propulsion System Coolant Control Valve 1

Callout Component Name Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Radiator Upper Bracket Nut [2x] - - 22 N.m (16 lb ft) Hybrid/Electric Vehicle Propulsion System Coolant Control Valve 1 Replacement - Left Side
2 Drive Motor Battery Control Module Bracket Nut [2x] - - 22 N.m (16 lb ft) Drive Motor Control Module Radiator Inlet Hose Replacement
3 Hybrid/Electric Vehicle Propulsion System Coolant Control Valve 1 [3x] - - 9 N.m (80 lb in) Hybrid/Electric Vehicle Propulsion System Coolant Control Valve 1 Replacement - Left Side
GM6615921Courtesy of GENERAL MOTORS COMPANY
Rear Electric Drive Transmission Module Extension Coolant Hose

Callout Component Name Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Drive Motor Control Module Cooling Inlet Hose Bolt [2x] - - 9 N.m (80 lb in) Rear Electric Drive Transmission Module Coolant Extension Hose Replacement (GQ2 / GQB / GQC) , or Rear Electric Drive Transmission Module Coolant Extension Hose Replacement (GQH / GQI / GQO)
