Installation Procedure

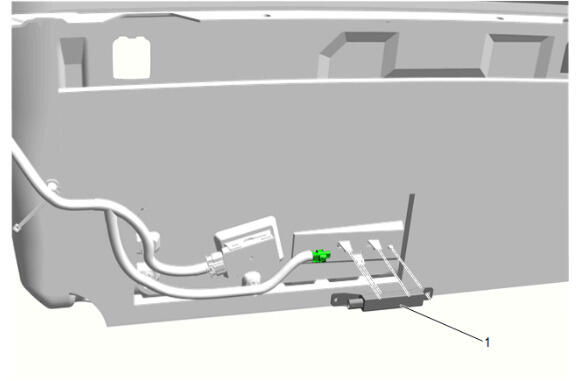

  1. GM5830186Courtesy of GENERAL MOTORS COMPANY

    Low Frequency Front Compartment Antenna (1) - Install

  2. Secure the retaining tabs.
  3. Connect the electrical connector.
  4. GM5787366Courtesy of GENERAL MOTORS COMPANY

    Front Trim Finish Compartment (2) - Install - Front Trim Finish Compartment Removal and Installation
