Installation Procedure

  1. GM6379351Courtesy of GENERAL MOTORS COMPANY

    Garage Door Opener Transmitter (1) - Install

  2. Ensure that the retaining tabs are fully secured.

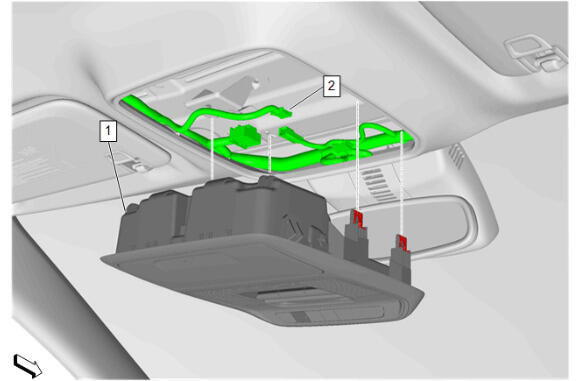

  3. GM6465284Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connectors.

  4. Roof Console (1) - Install
