Keyless Entry - Active
September 30: LEMON manuals is back up on a temporary server! Slowness is possible

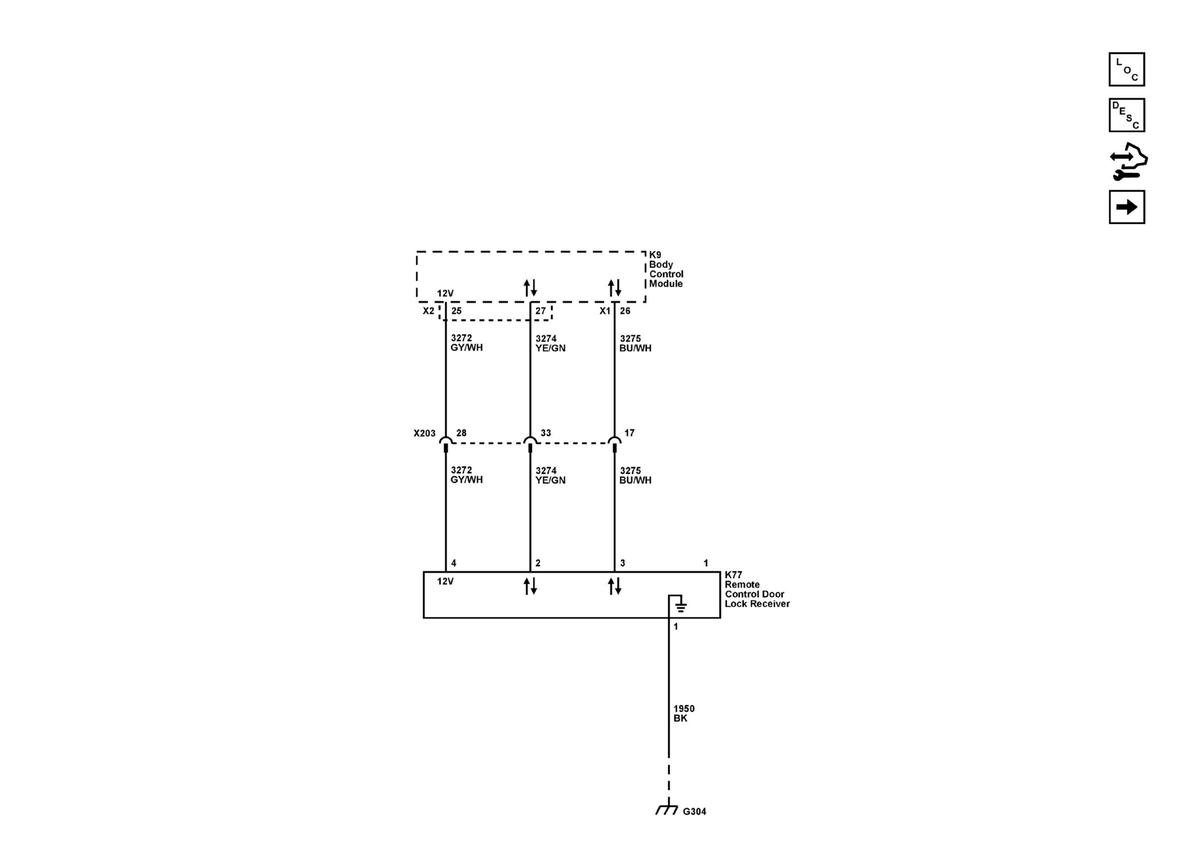

Keyless Entry - Active
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
