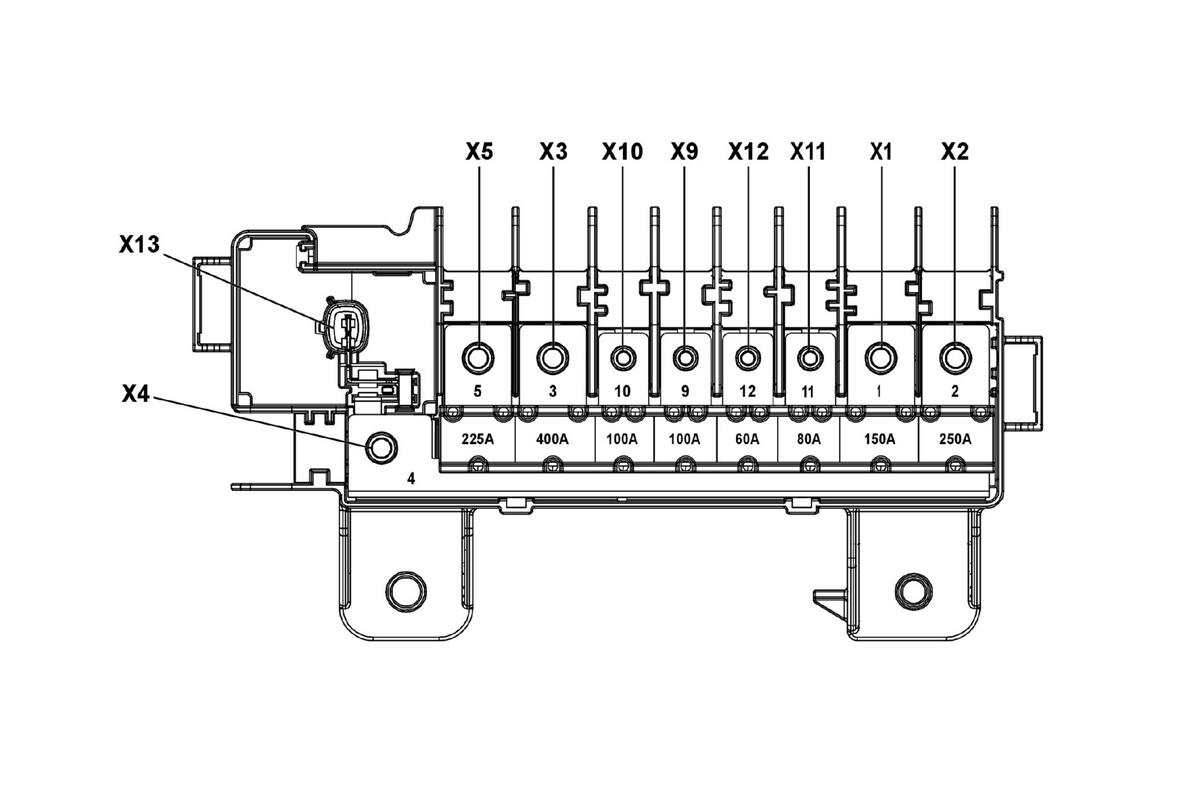

X50B Battery Distribution Engine Compartment Fuse Block Top View

GM6179249Courtesy of GENERAL MOTORS COMPANY
Usage Table

No. Device Label Name Device Assigned Name Rating Description
Fuses
1 - F1BA 150A
  • K43 Power Steering Control Module
2 - F2BA 250A
  • X50A Engine Wiring Harness Junction Block
3 - F3BA 400A
  • M64 Starter
5 - F5BA 225A
  • G13 Generator (-Z82)
5 - F5BA 300A
  • G13 Generator (Z82)
9 - F9BA 100A
  • X51A Instrument Panel Wiring Harness Junction Block
10 - F10BA 100A
  • X51A Instrument Panel Wiring Harness Junction Block
11 - F11BA 80A
  • G59 Engine Coolant Pump
12 - F12BA 60A
  • K160 Brake System Control Module
13 - F13BA 5A
  • B110 Battery Monitor Module
