Removal Procedure

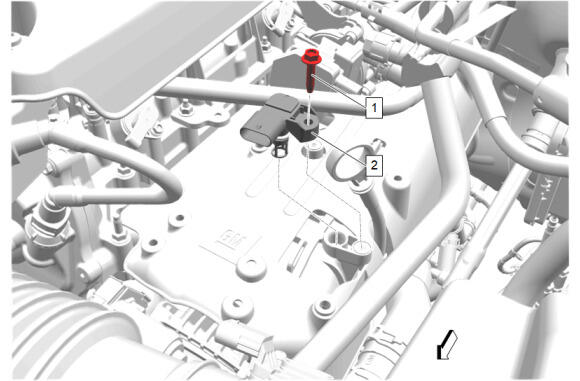

  1. GM6137659Courtesy of GENERAL MOTORS COMPANY

    Disconnect the electrical connector.

  2. Intake Air Pressure and Temperature Sensor Bolt (1) - Remove
  3. Intake Air Pressure and Temperature Sensor (2) - Remove
