Removal Procedure

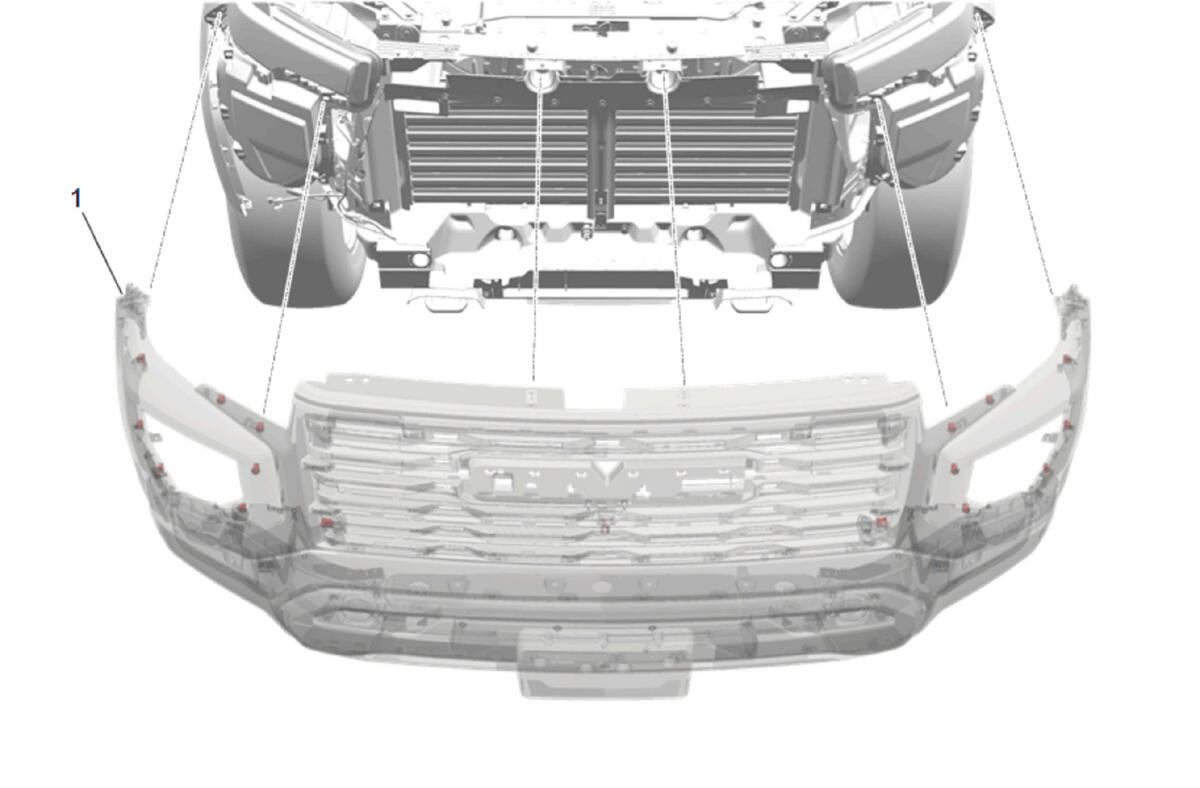

  1. GM6164817Courtesy of GENERAL MOTORS COMPANY

    With the aid of an assistant, remove the fascia. (1) Front Bumper Fascia Removal and Installation (without SD0) , or Front Bumper Fascia Removal and Installation (SD0)

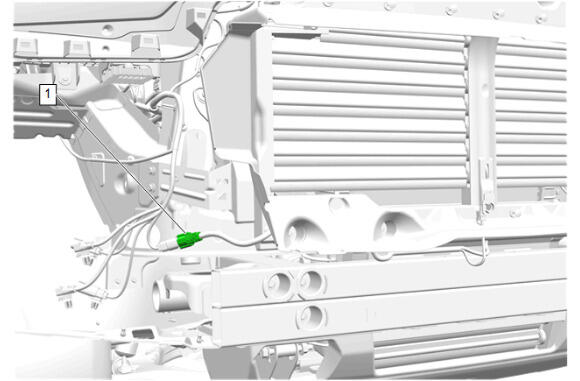

  2. GM6141507Courtesy of GENERAL MOTORS COMPANY

    Disconnect the electrical connector. (1)

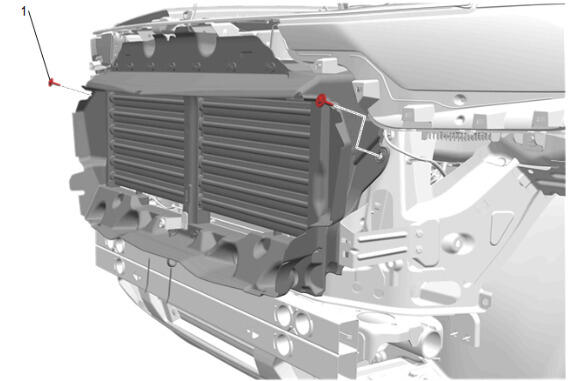

  3. GM6141014Courtesy of GENERAL MOTORS COMPANY

    Front Bumper Shutter Bolt (1) - Remove [2x]

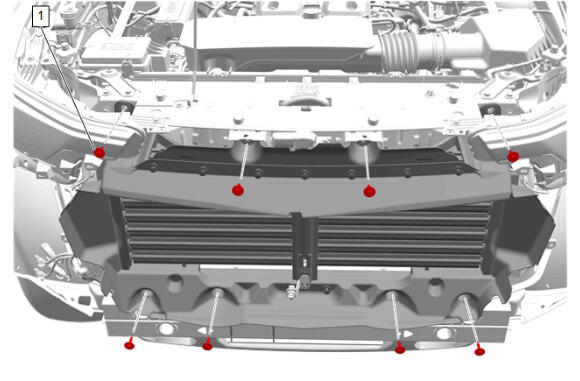

  4. GM6141023Courtesy of GENERAL MOTORS COMPANY

    Front Bumper Shutter Bolt (1) - Remove [8x]

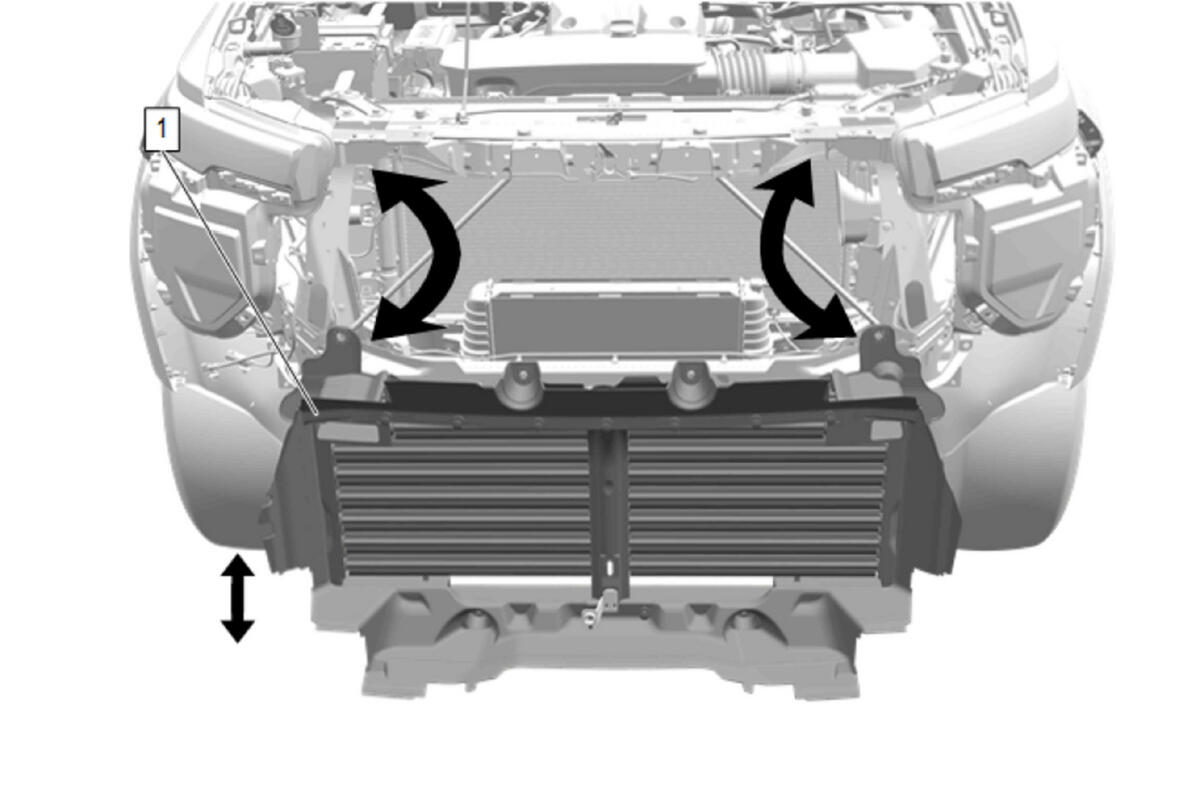

  5. GM6165917Courtesy of GENERAL MOTORS COMPANY

    Pull the lower edge of the front bumper shutter outward and then pull down to clear the upper bolt tabs.

  6. Front Bumper Shutter (1) - Remove

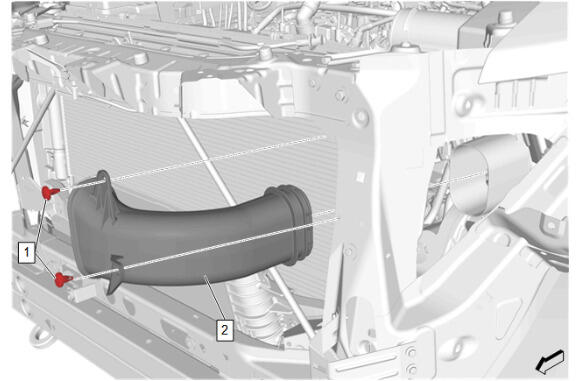

  7. GM6158007Courtesy of GENERAL MOTORS COMPANY

    Intake Air Duct Retainer (1) - Remove [2x]

  8. Intake Air Duct (2) - Remove
