Removal Procedure

  1. Open and support the endgate.
  2. GM6145434Courtesy of GENERAL MOTORS COMPANY

    Pickup Box Endgate Inner Panel Access Hole Cover Bolt (1) - Remove [8x]

  3. Pickup Box Endgate Access Hole Cover (2) - Remove

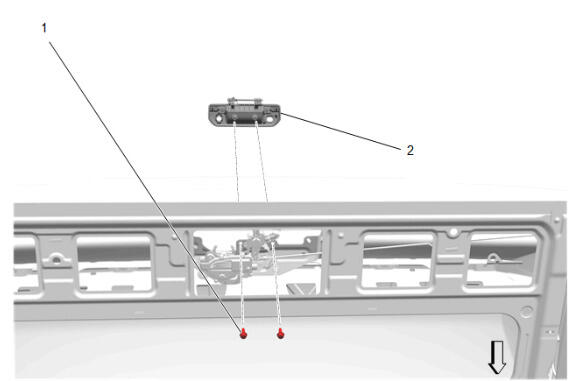

  4. GM6162816Courtesy of GENERAL MOTORS COMPANY

    Pickup Box Endgate Latch Handle Bolt (1) - Remove [2x]

  5. Pickup Box Endgate Latch Handle (2) - Remove

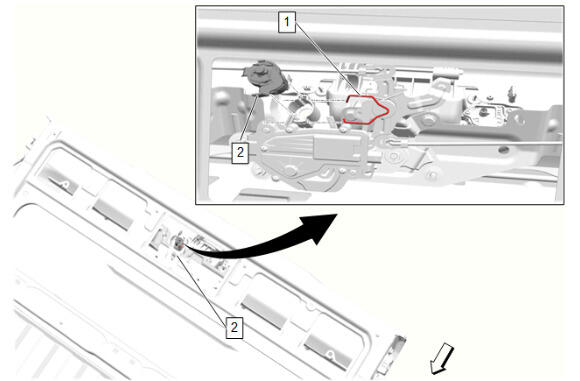

  6. GM6162805Courtesy of GENERAL MOTORS COMPANY

    Endgate Lock Cylinder Clip (1) - Remove

  7. Endgate Lock Cylinder (2) - Remove

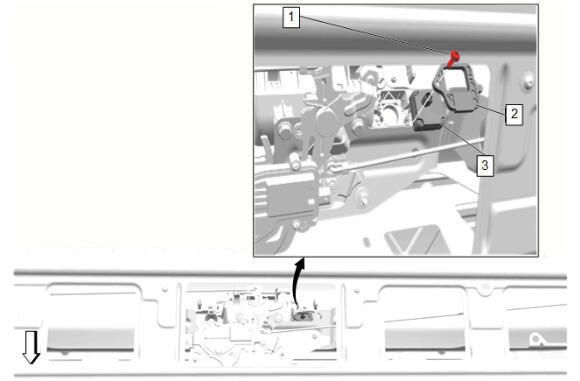

  8. GM6174080Courtesy of GENERAL MOTORS COMPANY

    Disconnect the electrical connector.

  9. Rearview Driver Information Camera Bolt (1) - Remove
  10. Rearview Driver Information Camera Bracket (2) - Remove
  11. Rearview Driver Information Camera (3) - Remove
