Drive Motor Power Inverter Module Terminal Insulator Block Removal
Courtesy of GENERAL MOTORS COMPANY

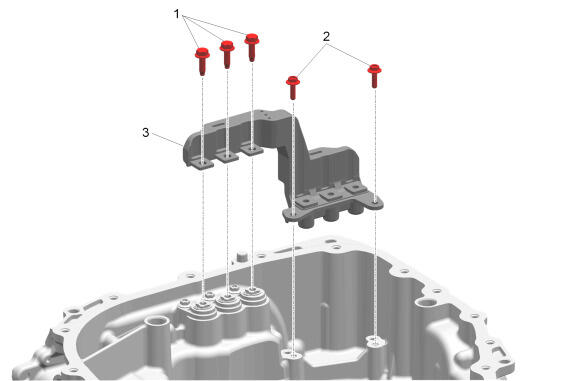

Drive Motor Power Inverter Module Connector Bolt (1) - Remove [3x]
Drive Motor Power Inverter Module Connector Bolt (2) - Remove [2x]
Drive Motor Power Inverter Module Terminal Insulator Block (3) - Remove
