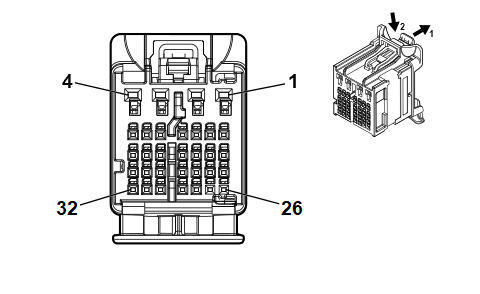

K124 Image Processing Module X2

GM5493614Courtesy of GENERAL MOTORS COMPANY
Connector Part Information
  • Harness Type: Body Wiring Harness
  • OEM Connector: 13534978
  • Service Connector: 13534978
  • Description: 32-Way F 0.5 MQS, 1.2 OCS Series (GY with GY Inner Connector)
Terminal Part Information

Terminal Type ID Terminated Lead Diagnostic Test Probe Terminal Removal Tool
I 19370262 EL-35616-58 (BK) EL-38125-58
Pin Size Color Circuit Function Terminal Type ID Option
1 - 4 - - - Not Occupied - -
5 0.35 WH 4978 AUTOSAR CAN Bus [-] 2 Serial Data I
6 0.35 WH 4978 AUTOSAR CAN Bus [-] 2 Serial Data I
7 0.35 BU / YE 4979 AUTOSAR CAN Bus [+] 2 Serial Data I
8 0.35 BU / YE 4979 AUTOSAR CAN Bus [+] 2 Serial Data I
9 0.35 WH / GY 4104 AUTOSAR CAN Bus [-] 8 Serial Data I
10 0.35 BU / GY 4105 AUTOSAR CAN Bus [+] 8 Serial Data I
11 - 12 - - - Not Occupied - -
13 0.35 WH 4978 AUTOSAR CAN Bus [-] 2 Serial Data I
14 0.35 BU / YE 4979 AUTOSAR CAN Bus [+] 2 Serial Data I
15 0.35 WH / GY 4104 AUTOSAR CAN Bus [-] 8 Serial Data I
16 0.35 WH / GY 4104 AUTOSAR CAN Bus [-] 8 Serial Data I
17 0.35 BU / GY 4105 AUTOSAR CAN Bus [+] 8 Serial Data I
18 0.35 BU / GY 4105 AUTOSAR CAN Bus [+] 8 Serial Data I
19 - 20 - - - Not Occupied - -
21 0.35 BU / YE 8977 Private Serial Data Active Safety CAN Bus [+] Serial Data I
22 0.35 WH / YE 8976 Private Serial Data Active Safety CAN Bus [-] Serial Data I
23 - 32 - - - Not Occupied - -
