Installation Procedure

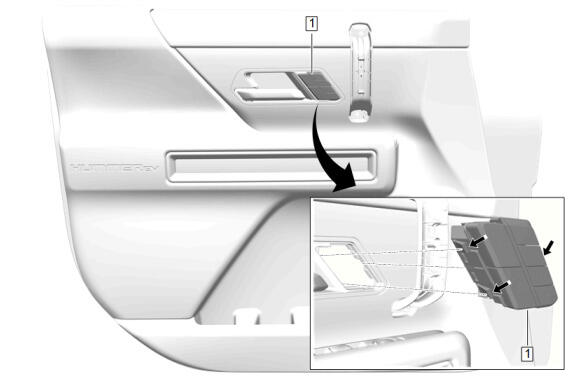

  1. GM5808297

    Front Seat Adjuster Memory Switch (1) - Install

  2. Connect the electrical connector.
  3. GM5774701

    Front Side Door Trim (3) - Install - Front Side Door Trim Removal and Installation (Without Front Side Door Trim Bolt Cap) , or Front Side Door Trim Removal and Installation (With Front Side Door Trim Bolt Cap)
