Installation Procedure

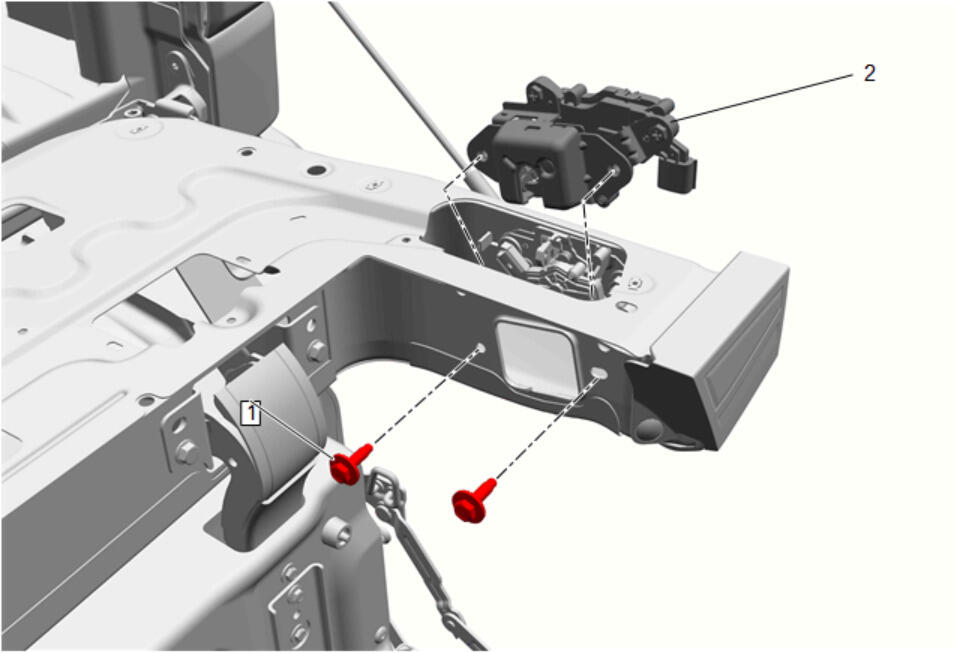

  1. GM5043692Courtesy of GENERAL MOTORS COMPANY

    Pickup Box Auxiliary Endgate Latch (2) - Install

  2. Wiring Harness Retainer - Install
  3. Connect the electrical connector.
  4. Install the pickup box auxiliary endgate bumper.
    5. CAUTION:

    Refer to Fastener Caution .

  5. Pickup Box Auxiliary Endgate Latch Bolt (1) - Install and tighten [2x] - Fastener Specifications
  6. GM5814845Courtesy of GENERAL MOTORS COMPANY

    Pickup Box Endgate Access Hole Cover Panel (2) - Install

  7. Pickup Box Endgate Access Hole Cover Panel Bolt (1) - Install and tighten [12x] - Fastener Specifications
  8. Close the step and the endgate.
