Removal Procedure

  1. GM5788843

    With the aid of an assistant, remove the fascia. (1) Front Bumper Fascia Removal and Installation

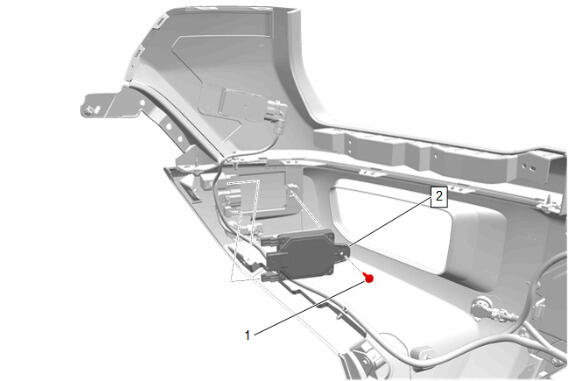

  2. GM5792244

    Disconnect the electrical connector.

  3. Short Range Radar Sensor Bolt (1) - Remove
    4. NOTE:

    Observe the mounting location of the short range radar sensor to ensure proper reinstallation.

  4. Front Short Range Radar Sensor (2) - Remove
