Installation Procedure

WARNING: This page is about a different car, the 2021 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

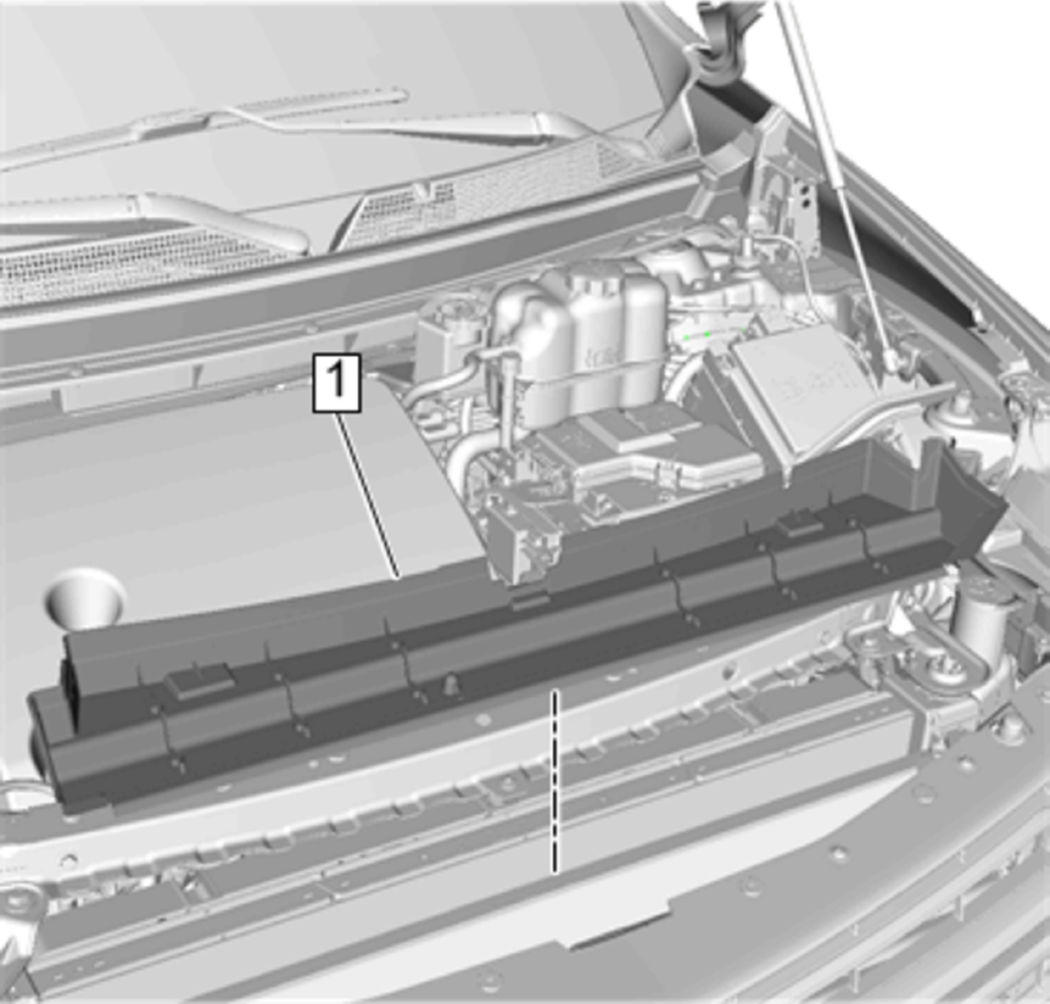

Radiator Air Baffle (1) - Install
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

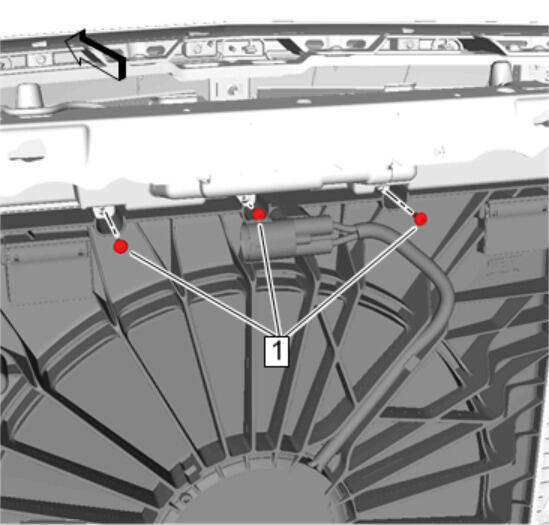

Radiator Air Baffle Bolt (1) @ Engine Coolant Fan - Install and tighten [ 3x ]

9 N.m (80 lb in)
Courtesy of GENERAL MOTORS COMPANY

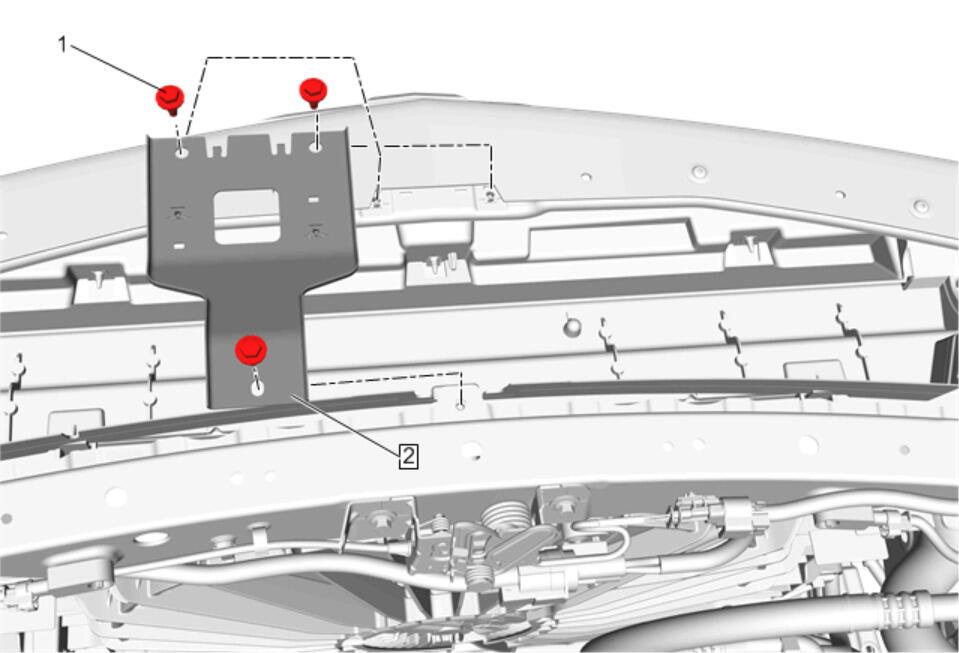

Front Bumper Fascia Support Brace-- Upper (2) - Install - Front Bumper Fascia Support Brace Replacement - Upper
